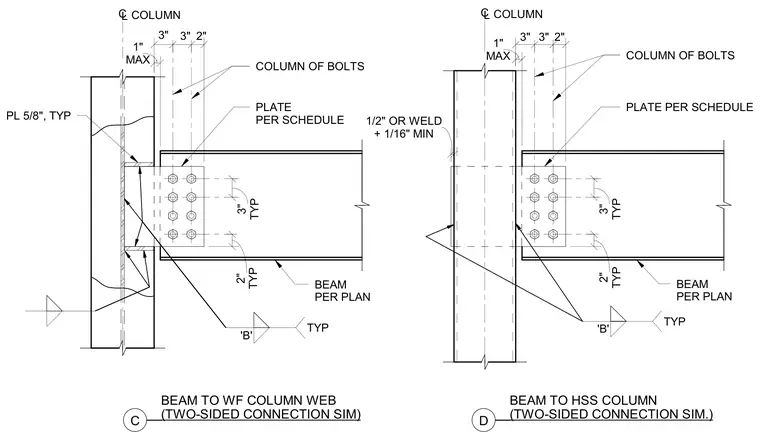

Two-sided beam-to-column connections show a supported steel beam framing into the web of a wide flange column and an HSS column. Connection is made using a plate sized per schedule bolted to the beam web with a column of bolts at typical spacings. The wide flange column detail incorporates a five-eighths inch plate typical and weld size details, while the HSS column detail shows equivalent bolt spacing and plate connection criteria.
__ __ C (TWO-SIDED CONNECTION SIM) BEAM TO WF COLUMN WEB __ __ D (TWO-SIDED CONNECTION SIM.) BEAM TO HSS COLUMN 3" 3" 2" TYP 3" COLUMN OF BOLTS BEAM PER PLAN TYP 2" 'B' TYP PL 5/8", TYP CL COLUMN 3" 3" 2" TYP 3" COLUMN OF BOLTS BEAM PER PLAN TYP 2" 'B' TYP PLATE PER SCHEDULE PLATE PER SCHEDULE CL COLUMN MAX 1" MAX 1" + 1/16" MIN 1/2" OR WELD
