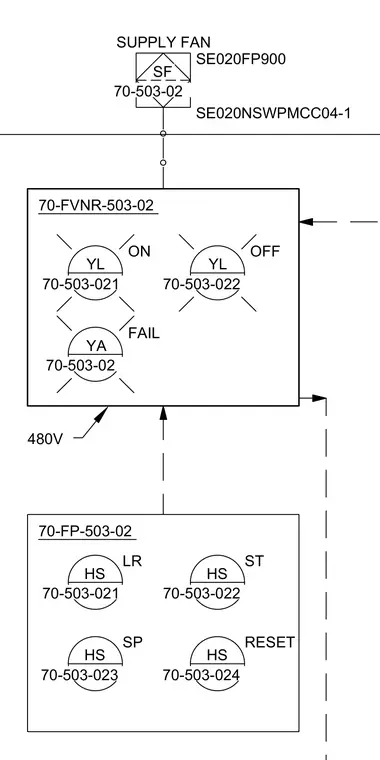

An electrical schematic diagram showing the power and control configuration for supply fan SE020FP900 fed from motor control center SE020NSWPMCC04-1 at 480V. The system includes a magnetic motor starter unit 70-FVNR-503-02 equipped with yellow indicator lights for ON and OFF status and a yellow alarm light for FAIL conditions. A separate control station 70-FP-503-02 provides hand-off-auto switch positions labeled Local/Remote, Start, Stop, and Reset.
HS 70-503-021 LR HS 70-503-022 ST HS 70-503-023 SP HS 70-503-024 RESET )915 480V )3 SF SUPPLY FAN SE020NSWPMCC04-1 SE020FP900 YL 70-503-022 OFF YA FAIL YL 70-503-021 ON
