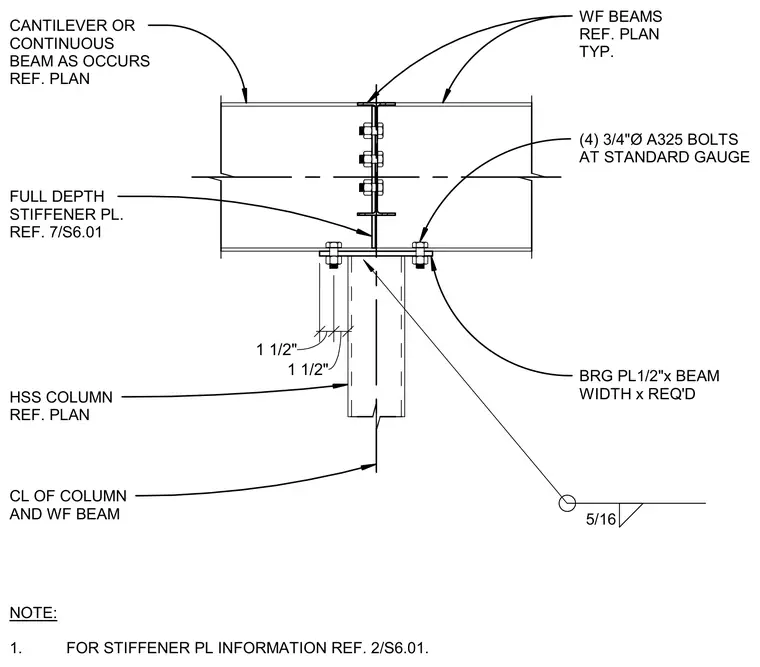

Continuous or cantilevered wide flange beams frame into an HSS column centerline alignment. A bearing plate measuring one-half inch thick by the beam width as required sits atop the column, secured with four three-quarter inch diameter ASTM A325 bolts at standard gauge. A full-depth stiffener plate aligns vertically within the web of the wide flange beams, welded with a five-sixteenth inch fillet weld.
WF BEAMS REF. PLAN TYP. CL OF COLUMN AND WF BEAM HSS COLUMN REF. PLAN FULL DEPTH STIFFENER PL. REF. 7/S6.01 (4) 3/4"Ø A325 BOLTS AT STANDARD GAUGE BRG PL1/2"x BEAM WIDTH x REQ'D 5/16 CANTILEVER OR CONTINUOUS BEAM AS OCCURS REF. PLAN NOTE: 1. FOR STIFFENER PL INFORMATION REF. 2/S6.01. 1 1/2" 1 1/2"
