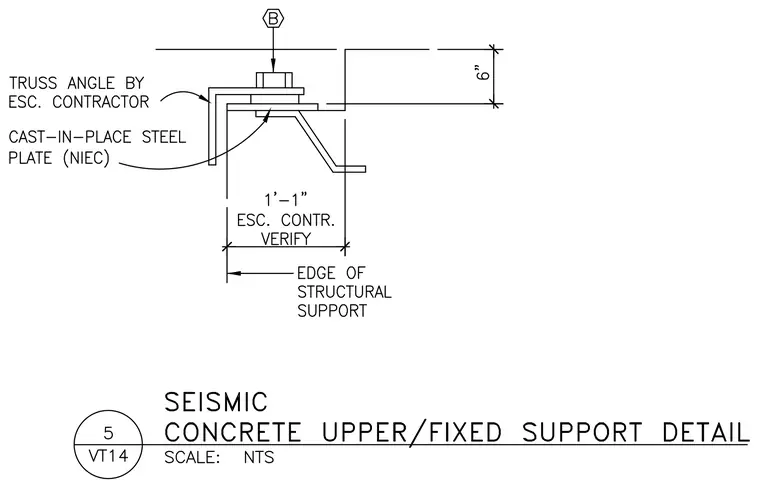

A truss angle provided by the escalator contractor connects to a cast-in-place steel plate with a vertical offset of six inches. The assembly includes a mechanical fastener marked with grid bubble B and maintains a one-foot-one-inch dimension from the edge of the structural support. The escalator contractor is responsible for verifying all field dimensions and truss angle installations.
