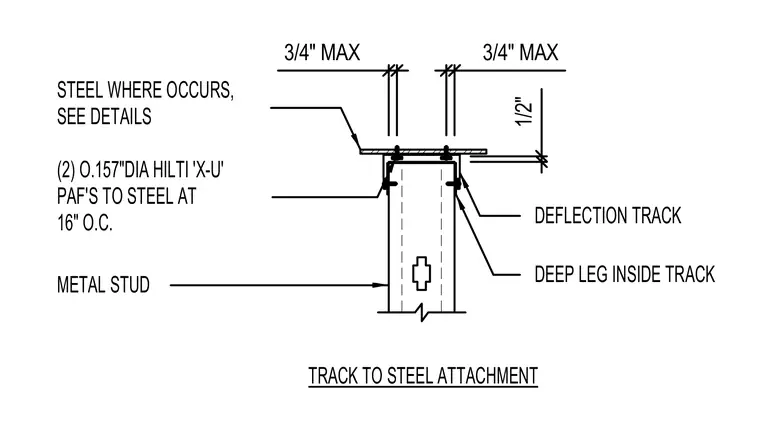

A metal stud framing assembly connects to overhead structural steel using a deep leg deflection track. The track is secured to the steel substrate with two 0.157-inch diameter Hilti X-U powder-actuated fasteners spaced at 16 inches on center. The assembly accommodates vertical deflection while providing lateral restraint for the metal stud wall.
STEEL WHERE OCCURS, (2) O.157"DIA HILTI 'X-U' PAF'S TO STEEL AT 16" O.C. DEFLECTION TRACK DEEP LEG INSIDE TRACK METAL STUD TRACK TO STEEL ATTACHMENT SEE DETAILS 1/2" 3/4" MAX 3/4" MAX
