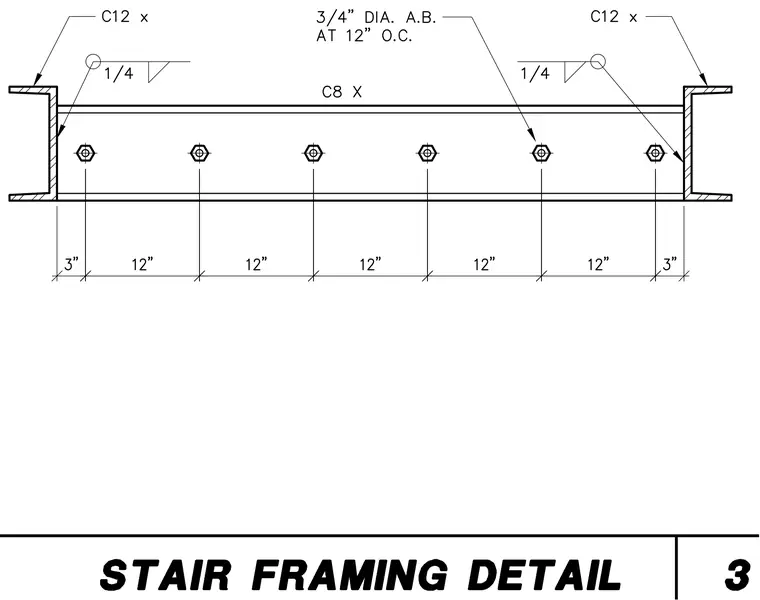

A C8 channel member spans between two C12 channel supports and is secured with three-quarter-inch diameter anchor bolts spaced at twelve inches on center. The C8 channel ends are welded to the C12 channel webs with one-quarter-inch fillet welds. The bolt layout features symmetric spacing starting three inches from each end with intermediate twelve-inch spacings.
