Structural · S-QHVJ5

Column on Beam Connection Details

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates

Connections

HSS Connection Bracing Connection Welded Connection Bolted Connection

About this detail

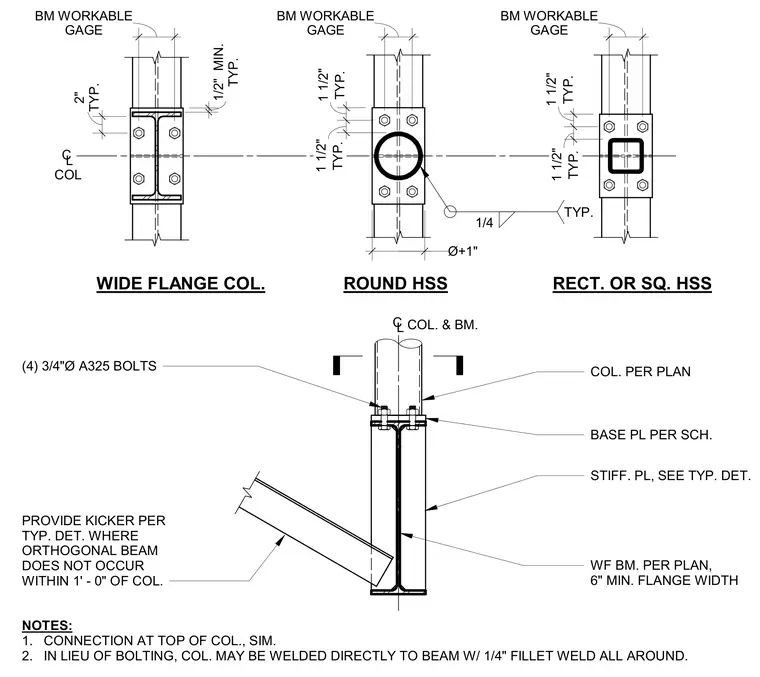

A column is supported on a wide flange beam, complete with base plates, stiffener plates, and optional kicker bracing for stability. The connection features four three-quarter inch diameter A325 bolts securing the column base plate, with alternative options for a one-quarter inch fillet weld all around when bolting is omitted. Plan callouts specify wide flange columns, round hollow structural sections, or rectangular and square hollow structural sections. Stiffener plates are detailed per typical drawings, and kickers are provided where an orthogonal beam does not occur within one foot of the column.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
