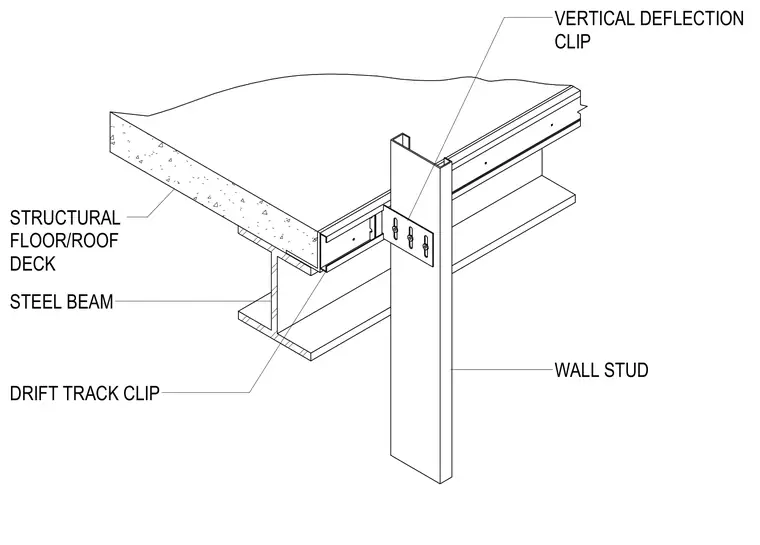

A cold-formed steel wall stud connects to a structural steel beam and overhead floor or roof deck through a vertical deflection clip and drift track clip. The drift track clip fastens to the underside of the deck assembly above the steel beam. A slotted vertical deflection clip attaches the wall stud to the track, allowing independent vertical movement of the slab without transferring loads to the stud.
WALL STUD VERTICAL DEFLECTION CLIP STRUCTURAL FLOOR/ROOF DECK STEEL BEAM DRIFT TRACK CLIP
