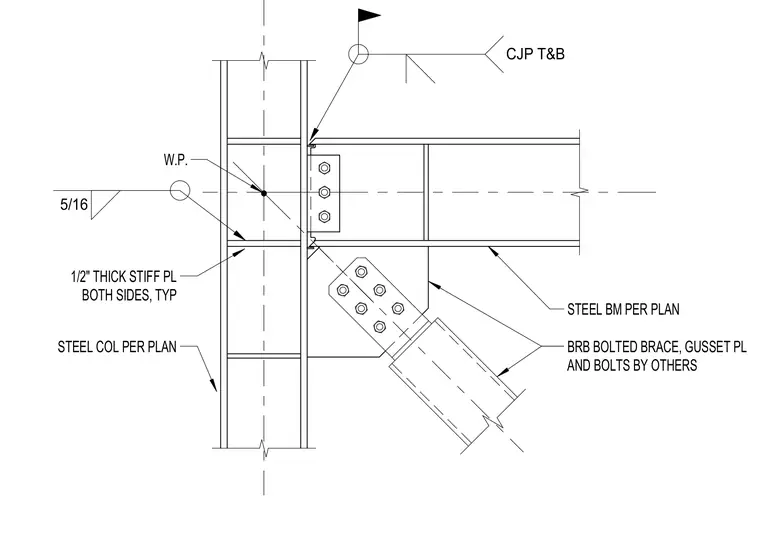

The steel beam connects to the steel column with a complete-joint-penetration weld at the top and bottom flanges. One-half-inch-thick stiffener plates are provided on both sides of the column web at typical locations aligning with the beam flanges. A buckling-restrained brace connects via bolts to a gusset plate, with the gusset plate and bolts provided by others. A five-sixteenths-inch fillet weld is indicated at the connection assemblies.
CJP T&B 1/2" THICK STIFF PL BOTH SIDES, TYP 5/16 W.P. STEEL BM PER PLAN BRB BOLTED BRACE, GUSSET PL AND BOLTS BY OTHERS STEEL COL PER PLAN
