Structural · S-QGRZN

CMU Non-Load Bearing Wall Bar Location Types and Notes

Materials

Concrete Steel Masonry / CMU

Elements

Beams Walls Bearing Walls Doors Decks Anchors / Embeds Connections / Plates Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development Embed Plate

About this detail

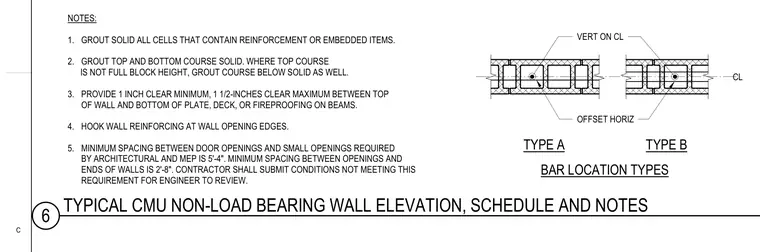

This drawing outlines bar location types for concrete masonry unit walls, categorizing them into Type A and Type B with vertical reinforcement centered and horizontal reinforcement offset. General notes specify requirements for solid grouting of reinforced cells, top and bottom courses, and minimum clearances between the top of the wall and structural framing. Additional notes dictate wall reinforcing hooks at openings, minimum spacing between door and MEP openings, and procedures for reviewing non-conforming conditions.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
