Two conditions for continuous concrete slab pours comprise a construction joint and a control joint. The construction joint features a keyed joint interface where the first and second pours meet, with the slab edge painted with a bond breaker before the second pour. Continuous dowels match the slab reinforcing size and spacing with one end greased for movement, supplemented by a minimum of one continuous reinforcing bar on each side of the joint. The control joint incorporates a sawn cut within twelve hours of placing concrete to a depth of twenty-five percent of the slab thickness. Both joint types require continuous bars on both sides sized per plan.

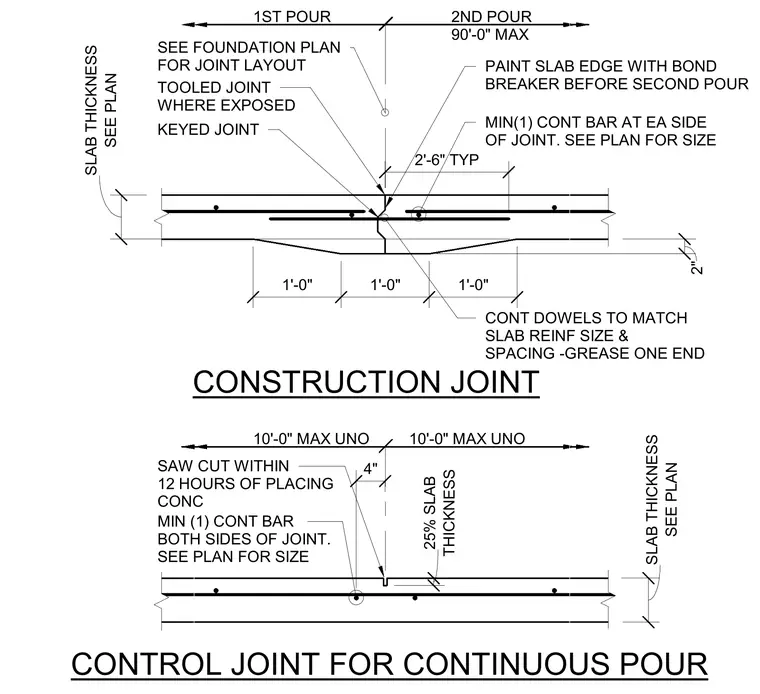

1ST POUR 2ND POUR 90'-0" MAX SEE FOUNDATION PLAN FOR JOINT LAYOUT TOOLED JOINT WHERE EXPOSED PAINT SLAB EDGE WITH BOND BREAKER BEFORE SECOND POUR MIN(1) CONT BAR AT EA SIDE OF JOINT. SEE PLAN FOR SIZE SEE PLAN SLAB THICKNESS 2" KEYED JOINT 1'-0" 1'-0" 1'-0" CONSTRUCTION JOINT 10'-0" MAX UNO 10'-0" MAX UNO 4" SAW CUT WITHIN 12 HOURS OF PLACING CONC MIN (1) CONT BAR BOTH SIDES OF JOINT. SEE PLAN FOR SIZE THICKNESS 25% SLAB SEE PLAN SLAB THICKNESS CONTROL JOINT FOR CONTINUOUS POUR 2'-6" TYP CONT DOWELS TO MATCH SLAB REINF SIZE & SPACING -GREASE ONE END
