Structural · S-QGDX2

Concrete Wall Panel to Foundation and Slab Connection

Materials

Concrete Masonry / CMU

Elements

Walls Floors / Slabs Foundations / Footings Anchors / Embeds Connections / Plates Reinforcing

Connections

Rebar Splice / Development

About this detail

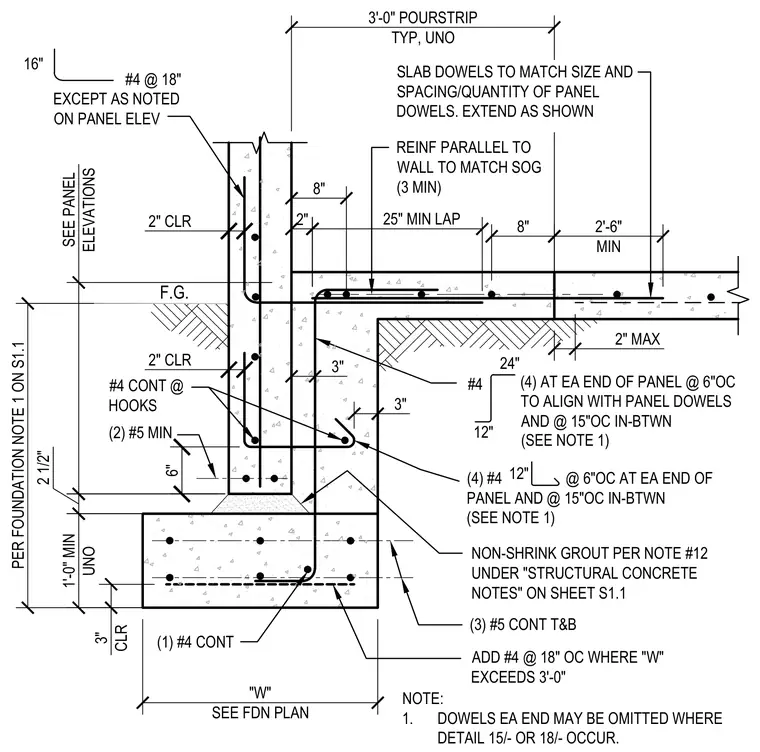

A concrete wall panel bears on a continuous concrete footing and stem wall, tied into an adjacent slab-on-grade with a three-foot pour strip. The footing is reinforced with three continuous number five bars top and bottom, with a minimum one-foot thickness unless otherwise noted. Vertical wall reinforcement consists of number four bars at eighteen inches on center, supplemented by additional bars at panel ends and corners. Slab dowels match the size, spacing, and quantity of panel dowels, featuring a twenty-five-inch minimum lap length into the slab. Non-shrink grout is placed beneath the panel per structural notes, and continuous number four bars with hooks reinforce the slab edge and pour strip junction.
