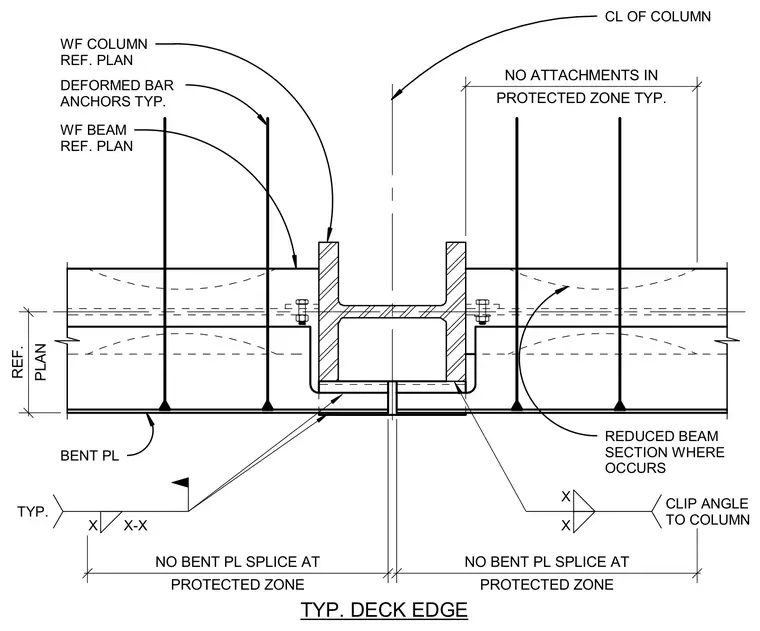

A wide-flange column connects to a wide-flange beam reference plan via clip angles secured with bolts. Deformed bar anchors extend typically into the assembly. A bent plate is positioned at the deck edge with specific welding requirements. No bent plate splices or attachments are permitted within the designated protected zone where a reduced beam section occurs.
CL OF COLUMN WF COLUMN REF. PLAN DEFORMED BAR ANCHORS TYP. WF BEAM REF. PLAN BENT PL PLAN REF. X X-X TYP. X X CLIP ANGLE TO COLUMN TYP. DECK EDGE PROTECTED ZONE TYP. NO ATTACHMENTS IN REDUCED BEAM SECTION WHERE OCCURS PROTECTED ZONE NO BENT PL SPLICE AT PROTECTED ZONE NO BENT PL SPLICE AT
