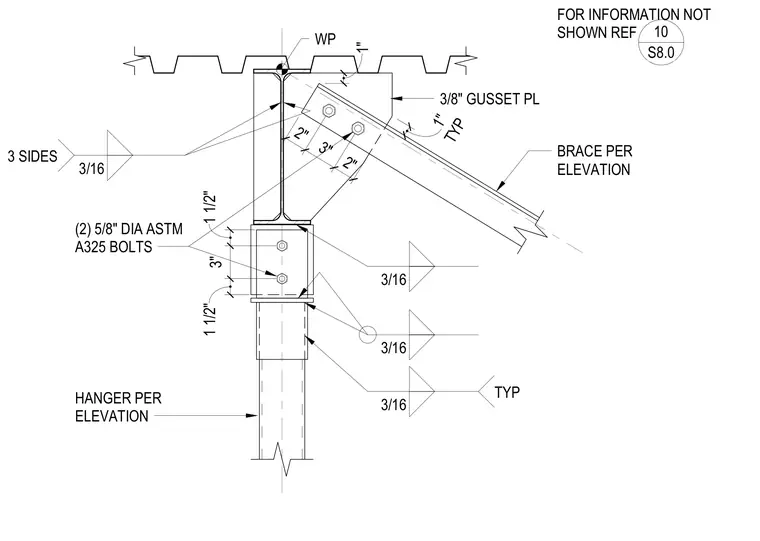

A structural steel connection joins a brace and a hanger to a supporting beam using a three-eighths-inch thick gusset plate. The brace connects with two five-eighths-inch diameter ASTM A325 bolts. Three-sixteenths-inch fillet welds secure the gusset plate and hanger assemblies in place.
1" BRACE PER ELEVATION 3/8" GUSSET PL HANGER PER ELEVATION (2) 5/8" DIA ASTM A325 BOLTS WP 10 S8.0 FOR INFORMATION NOT SHOWN REF 3/16 3 SIDES 2" 3" 2" TYP 1" 1 1/2" 3" 1 1/2" 3/16 TYP 3/16 3/16
