Structural · S-QG8BY

Edge Detail At Roof At Eifs

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)EIFS / Plaster / Stucco

Elements

Beams Windows Roofs Decks Arches Bracing

Connections

Bracing Connection

About this detail

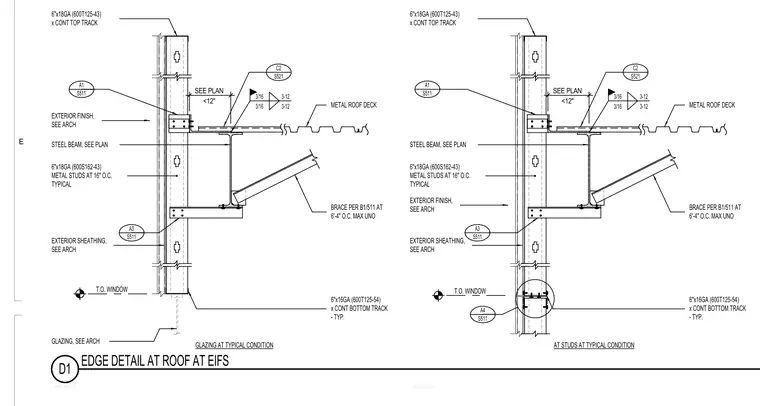

Cold-formed steel studs measuring six inches by eighteen gauge (six hundred S sixteen dash forty-three) spaced at sixteen inches on center support the exterior sheathing and finish per architectural drawings. A structural steel beam receives the metal roof deck and connects to framing with bracing installed per detail B one over five hundred eleven at six feet four inches on center maximum unless noted otherwise. The assembly features six-inch by eighteen-gauge continuous top tracks and six-inch by sixteen-gauge continuous bottom tracks with top of window elevations referenced. Detail bubbles direct the builder to related connections including A one, A three, A four, and C two.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
