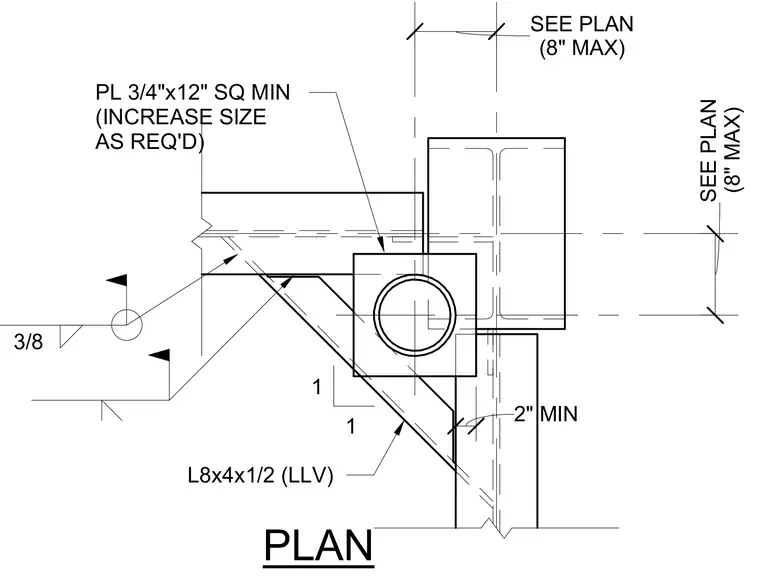

An angle brace measuring L8x4x1/2 with long leg vertical connects to a hollow structural section column using a three-eighths-inch fillet weld. A square plate measuring three-fourths-inch by twelve inches minimum sits at the connection, with size increased as required per plan. Dimensions indicate a two-inch minimum clearance and an eight-inch maximum spacing sized per plan.
PLAN L8x4x1/2 (LLV) 1 1 PL 3/4"x12" SQ MIN (INCREASE SIZE AS REQ'D) (8" MAX) SEE PLAN (8" MAX) SEE PLAN 2" MIN 3/8
