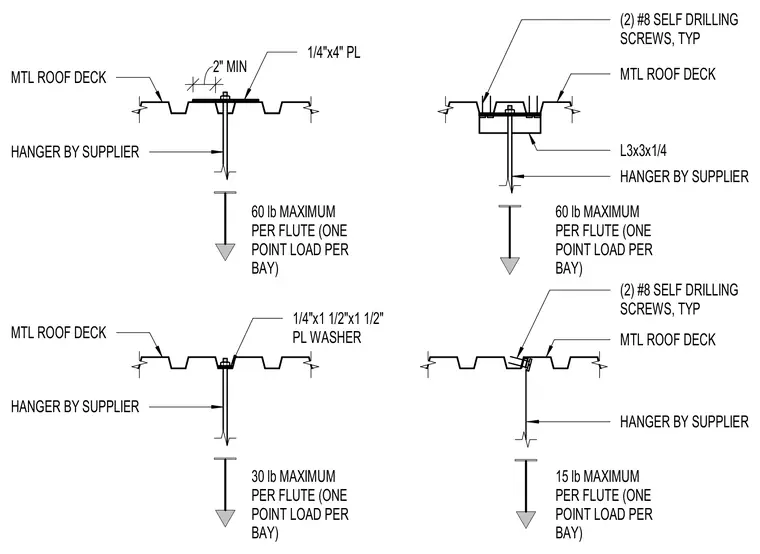

Metal roof deck hanger assemblies are suspended from various plate and angle configurations fastened directly to the fluted metal deck. The top-left detail features a supplier-provided hanger secured with a quarter-inch by four-inch plate resting across the top of the flute, supporting a sixty-pound maximum point load per bay. The top-right detail utilizes an L3x3x1/4 angle spanning beneath the flute with two number-eight self-drilling screws on each side, also supporting a sixty-pound maximum point load. The bottom-left detail employs a quarter-inch by one-and-a-half by one-and-a-half-inch plate washer for a thirty-pound maximum point load. The bottom-right detail connects a hanger directly to the side of the flute using two number-eight self-drilling screws for a fifteen-pound maximum point load.
2" MIN 1/4"x4" PL HANGER BY SUPPLIER MTL ROOF DECK 60 lb MAXIMUM PER FLUTE (ONE POINT LOAD PER BAY) HANGER BY SUPPLIER MTL ROOF DECK 30 lb MAXIMUM PER FLUTE (ONE POINT LOAD PER BAY) 60 lb MAXIMUM PER FLUTE (ONE POINT LOAD PER BAY) 15 lb MAXIMUM PER FLUTE (ONE POINT LOAD PER BAY) 1/4"x1 1/2"x1 1/2" PL WASHER MTL ROOF DECK (2) #8 SELF DRILLING SCREWS, TYP L3x3x1/4 MTL ROOF DECK (2) #8 SELF DRILLING SCREWS, TYP HANGER BY SUPPLIER HANGER BY SUPPLIER
