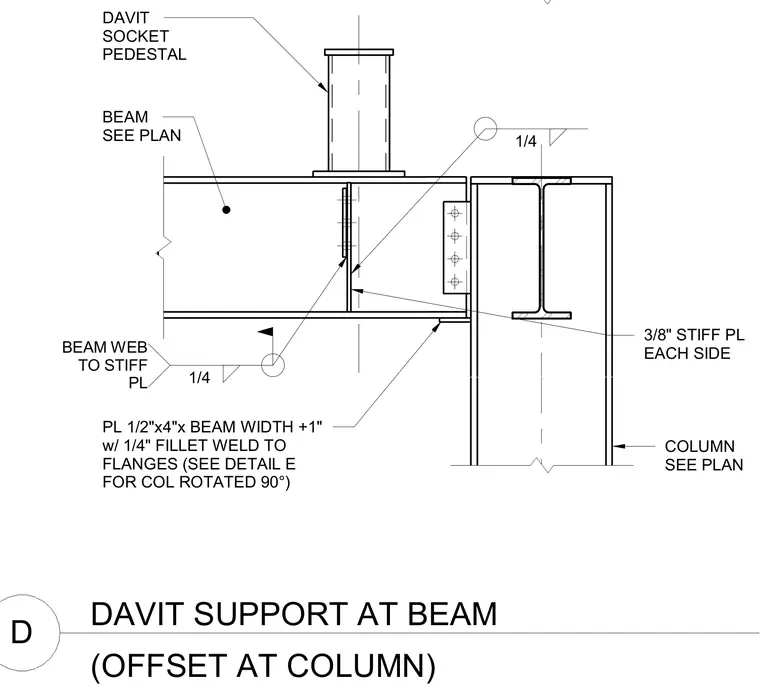

A davit socket pedestal is mounted atop a structural steel beam, which frames into a steel column with a bolted connection. A 1/2-inch by 4-inch plate matching the beam width plus one inch is welded to the beam flanges with quarter-inch fillet welds. Three-eighths-inch stiffener plates are welded to each side of the column web aligned with the beam web.
(OFFSET AT COLUMN) DAVIT SUPPORT AT BEAM D PL 1/2"x4"x BEAM WIDTH +1" w/ 1/4" FILLET WELD TO FLANGES (SEE DETAIL E FOR COL ROTATED 90°) BEAM SEE PLAN DAVIT SOCKET PEDESTAL 3/8" STIFF PL EACH SIDE COLUMN SEE PLAN 1/4 1/4 BEAM WEB TO STIFF PL
