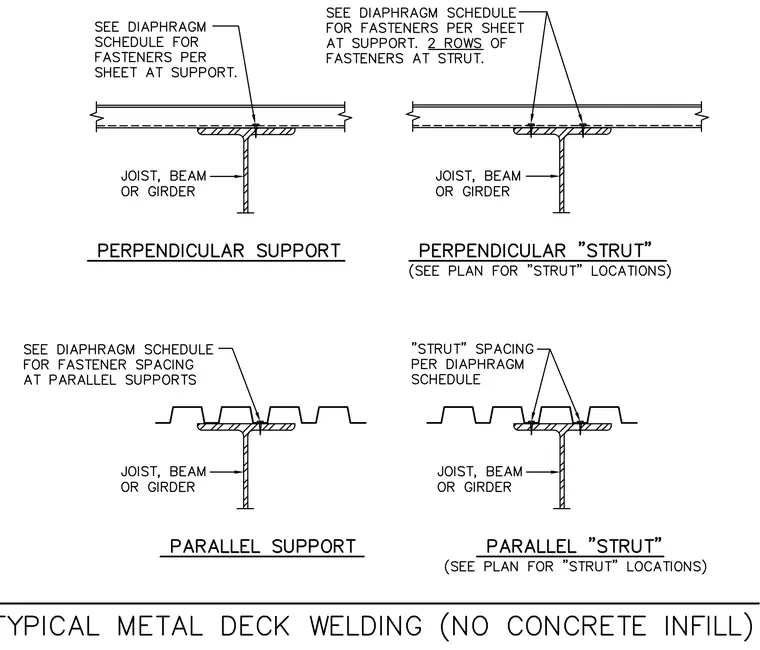

Metal deck attaches to supporting steel joists, beams, or girders for both perpendicular and parallel configurations without concrete infill. Fastener spacing and types are dictated by the diaphragm schedule, featuring single rows at standard supports and double rows at strut locations. Metal deck profiles bear directly on the top flange of the supporting structural members. Fasteners secure the fluted steel deck panels according to engineering specifications.
