A reinforced concrete curb is cast monolithically onto a concrete slab with dimensions and reinforcement sized per plan. The curb features a maximum height of nine inches and three-quarter inch chamfers on its top edges. Vertical reinforcing bars with standard hooks extend from the slab into the curb, tied alongside an additional continuous number four rebar.

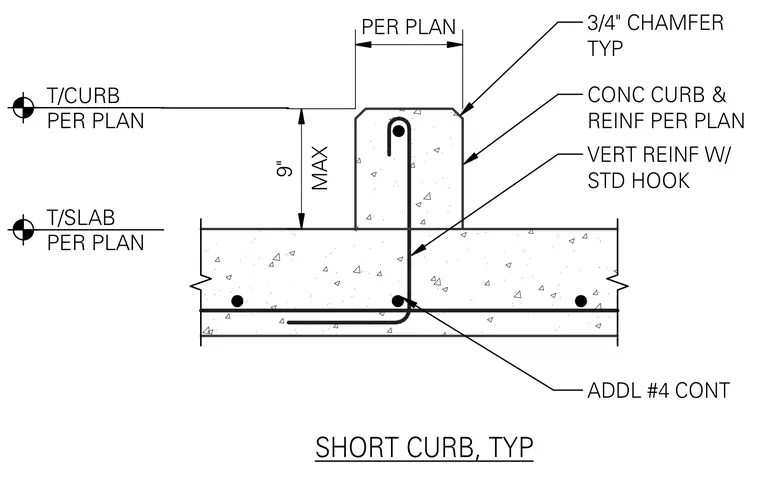

PER PLAN MAX 9" T/CURB PER PLAN T/SLAB PER PLAN 3/4" CHAMFER TYP CONC CURB & REINF PER PLAN VERT REINF W/ STD HOOK ADDL #4 CONT SHORT CURB, TYP
