Structural · S-QFW3R

Full Height Shear Tab Connection for W8, W10, W12, and W14 Beams

Materials

Steel

Elements

Beams

Connections

Shear Tab / Single Plate Bolted Connection Expansion / Slip Connection

About this detail

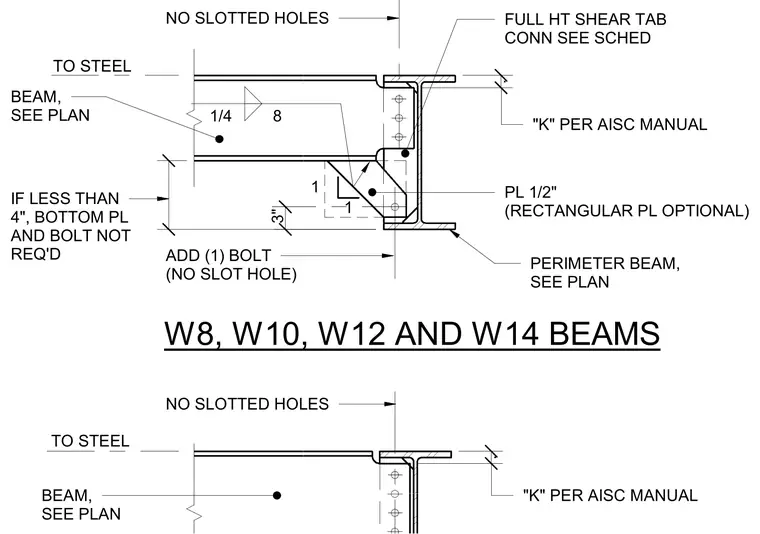

A full height shear tab connection joins W8, W10, W12, and W14 beams to a perimeter beam with no slotted holes. The connection utilizes a one-half inch thick rectangular or optional plate welded to the support with a one-quarter inch fillet weld, maintaining standard AISC k-dimension clearances. An additional single bolt with no slot hole is included unless the dimension is less than four inches, in which case the bottom plate and bolt are omitted.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
