Typical Closure Plate Overhang L <= 12"

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Columns Floors / Slabs Decks Arches Bracing Anchors / Embeds Connections / Plates

Connections

Bracing Connection Welded Connection Bolted Connection Deck Attachment Embed Plate

About this detail

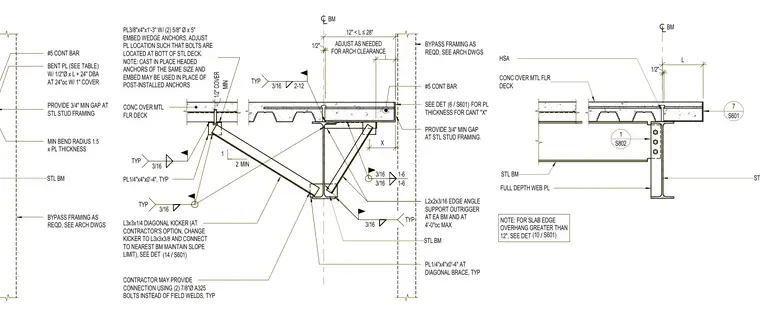

A closure plate assembly supports a concrete-over-metal-floor-deck slab edge overhang of twelve inches or less. A bent closure plate with headed deformed bar anchors at twenty-four inches on center maintains a one-inch concrete cover at the edge. The steel beam supports an outrigger and a diagonal kicker angle of three-by-three-by-one-quarter inches, with optional substitution for a heavier angle connected to the nearest beam. A continuous number five reinforcing bar runs along the edge, providing three-quarters of an inch minimum gap at the steel stud bypass framing. Fillet welds of three-sixteenths inch secure the structural steel connections, with optional two three-quarter-inch A325 bolts permitted in lieu of field welds.

BENT PL (SEE TABLE) W/ 1/2"Ø x L + 24" DBA AT 24"oc W/ 1" COVER STL BM #5 CONT BAR PROVIDE 3/4" MIN GAP AT STL STUD FRAMING BYPASS FRAMING AS REQD, SEE ARCH DWGS MIN BEND RADIUS 1.5 x PL THICKNESS PL3/8"x4"x1'-3" W/ (2) 5/8" Ø x 5" EMBED WEDGE ANCHORS, ADJUST PL LOCATION SUCH THAT BOLTS ARE LOCATED AT BOTT OF STL DECK. NOTE: CAST IN PLACE HEADED ANCHORS OF THE SAME SIZE AND EMBED MAY BE USED IN PLACE OF POST-INSTALLED ANCHORS L2x2x3/16 EDGE ANGLE SUPPORT OUTRIGGER AT EA BM AND AT 4'-0"oc MAX L3x3x1/4 DIAGONAL KICKER (AT CONTRACTOR'S OPTION, CHANGE KICKER TO L3x3x3/8 AND CONNECT TO NEAREST BM MAINTAIN SLOPE LIMIT), SEE DET PL1/4"x4"x0'-4", TYP PL1/4"x4"x0'-4" AT DIAGONAL BRACE, TYP 1/2" STL BM BM #5 CONT BAR CONTRACTOR MAY PROVIDE CONNECTION USING (2) 7/8"Ø A325 BOLTS INSTEAD OF FIELD WELDS, TYP MIN 1 2 12" < L ≤ 28" PROVIDE 3/4" MIN GAP AT STL STUD FRAMING. BYPASS FRAMING AS REQD, SEE ARCH DWGS FOR ARCH CLEARANCE ADJUST AS NEEDED CONC OVER MTL FLR DECK 3/16 TYP 3/16 2-12 TYP 3/16 TYP 3/16 TYP X SEE DET FOR PL THICKNESS FOR CANT "X" 3/16 3/16 1-6 1-6 MIN 1/2" COVER / (6 S601) / (14 S601) STL BM CONC OVER MTL FLR DECK L 1/2" HSA STL BM BM NOTE: FOR SLAB EDGE OVERHANG GREATER THAN 12", SEE DET FULL DEPTH WEB PL 1 S802 7 S601 / (10 S601) BENT PL (SEE TABLE) W/ 1/2"Ø x L + 24" DBA AT 24"oc W/ 1" COVER STL BM #5 CONT BAR PROVIDE 3/4" MIN GAP AT STL STUD FRAMING BYPASS FRAMING AS REQD, SEE ARCH DWGS MIN BEND RADIUS 1.5 x PL THICKNESS PL3/8"x4"x1'-3" W/ (2) 5/8" Ø x 5" EMBED WEDGE ANCHORS, ADJUST PL LOCATION SUCH THAT BOLTS ARE LOCATED AT BOTT OF STL DECK. NOTE: CAST IN PLACE HEADED ANCHORS OF THE SAME SIZE AND EMBED MAY BE USED IN PLACE OF POST-INSTALLED ANCHORS L2x2x3/16 EDGE ANGLE SUPPORT OUTRIGGER AT EA BM AND AT 4'-0"oc MAX L3x3x1/4 DIAGONAL KICKER (AT CONTRACTOR'S OPTION, CHANGE KICKER TO L3x3x3/8 AND CONNECT TO NEAREST BM MAINTAIN SLOPE LIMIT), SEE DET PL1/4"x4"x0'-4", TYP PL1/4"x4"x0'-4" AT DIAGONAL BRACE, TYP 1/2" STL BM BM #5 CONT BAR CONTRACTOR MAY PROVIDE CONNECTION USING (2) 7/8"Ø A325 BOLTS INSTEAD OF FIELD WELDS, TYP MIN 1 2 12" < L ≤ 28" PROVIDE 3/4" MIN GAP AT STL STUD FRAMING. BYPASS FRAMING AS REQD, SEE ARCH DWGS FOR ARCH CLEARANCE ADJUST AS NEEDED CONC OVER MTL FLR DECK 3/16 TYP 3/16 2-12 TYP 3/16 TYP 3/16 TYP X SEE DET FOR PL THICKNESS FOR CANT "X" 3/16 3/16 1-6 1-6 MIN 1/2" COVER / (6 S601) / (14 S601) STL BM CONC OVER MTL FLR DECK L 1/2" HSA STL BM BM NOTE: FOR SLAB EDGE OVERHANG GREATER THAN 12", SEE DET FULL DEPTH WEB PL 1 S802 7 S601 / (10 S601)
