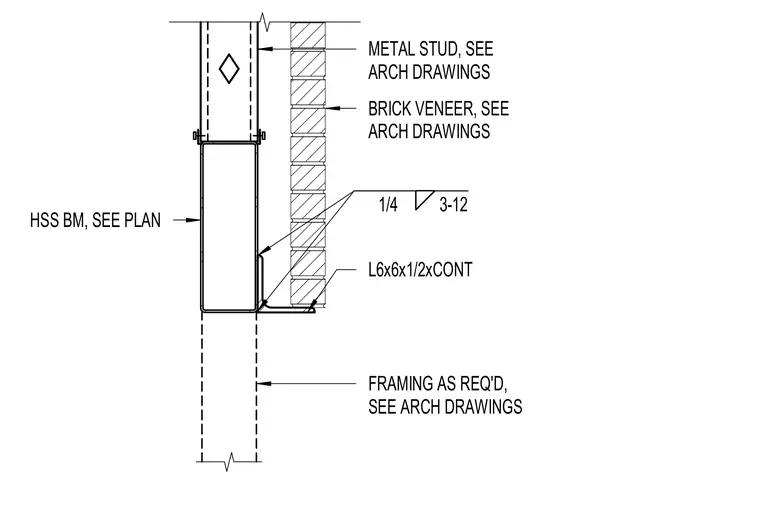

A continuous L6x6x1/2 angle supports the exterior brick veneer and is welded to the hollow structural section beam with a quarter-inch fillet weld spaced at three inches on center and twelve inches maximum spacing. Additional framing and metal studs are provided per architectural drawings.
L6x6x1/2xCONT 1/4 3-12 FRAMING AS REQ'D, SEE ARCH DRAWINGS HSS BM, SEE PLAN BRICK VENEER, SEE ARCH DRAWINGS METAL STUD, SEE ARCH DRAWINGS
