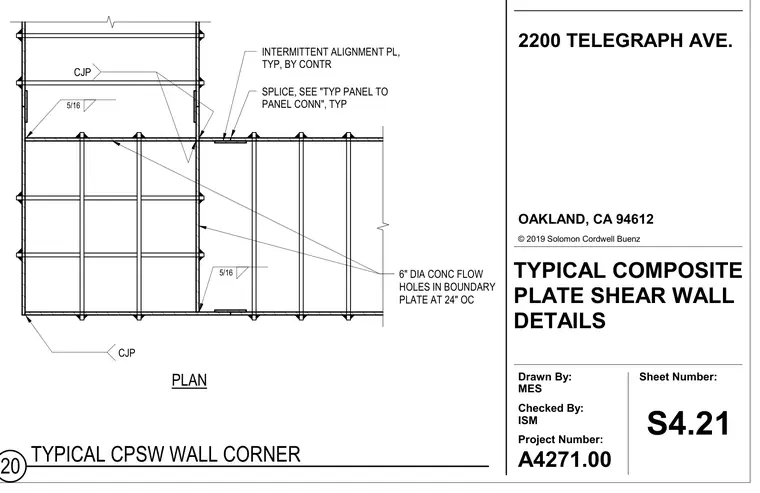

A typical composite plate shear wall corner plan incorporates steel boundary elements and connecting plates. Complete joint penetration welds and five-sixteenth inch fillet welds join the steel plates together. Intermittent alignment plates are provided by the contractor at panel splices. Six-inch diameter concrete flow holes are spaced at twenty-four inches on center within the boundary plates.
SPLICE, SEE "TYP PANEL TO PANEL CONN", TYP CJP INTERMITTENT ALIGNMENT PL, TYP, BY CONTR PLAN CJP 5/16 5/16 6" DIA CONC FLOW HOLES IN BOUNDARY PLATE AT 24" OC Drawn By: Checked By: Project Number: Sheet Number: © 2019 Solomon Cordwell Buenz TYPICAL COMPOSITE PLATE SHEAR WALL DETAILS OAKLAND, CA 94612 2200 TELEGRAPH AVE. S4.21 MES ISM A4271.00 20 TYPICAL CPSW WALL CORNER
