A stair stringer connects to a wide flange beam using a half-inch gusset plate with erection bolts as required. The connection incorporates quarter-inch fillet welds on three sides joining the plate and structural members. A two-inch return is specified at the top and bottom. The assembly supports a cross-laminated timber floor or concrete over metal deck bearing adjacent to the stair treads and steel risers.

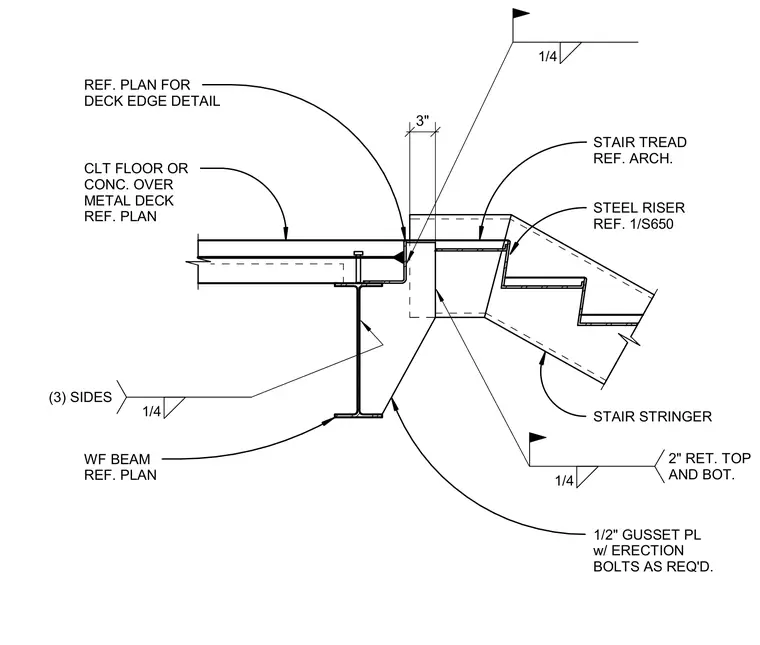

REF. PLAN FOR DECK EDGE DETAIL CLT FLOOR OR CONC. OVER METAL DECK REF. PLAN 3" WF BEAM REF. PLAN 1/4 (3) SIDES 1/2" GUSSET PL w/ ERECTION BOLTS AS REQ'D. 1/4 2" RET. TOP AND BOT. STAIR STRINGER STAIR TREAD REF. ARCH. 1/4 STEEL RISER REF. 1/S650
