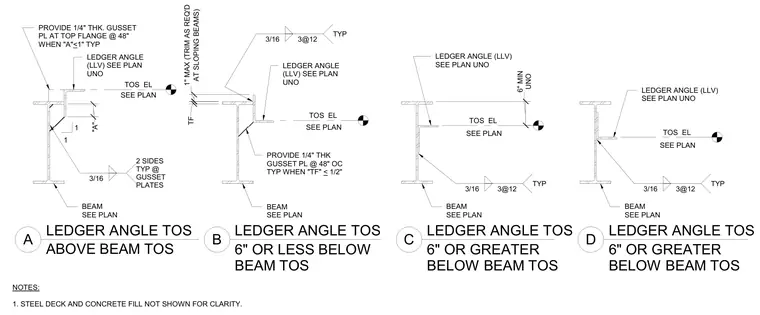

Ledger angles are welded to supporting steel beams at varying vertical distances from the top of steel. Detail A features a ledger angle located above the beam top of steel with a one-quarter-inch thick stiffener plate welded to the top flange at forty-eight inches on center when dimension A is one inch or less, using three-sixteenth-inch fillet welds on two sides. Detail B features a ledger angle six inches or less below the beam top of steel with a one-quarter-inch thick gusset plate provided at forty-eight inches on center when flange thickness is one-half inch or less. Details C and D position ledger angles six inches or greater below the beam top of steel with continuous or spaced fillet welds as indicated. Steel deck and concrete fill are omitted for clarity.
1 1 6" OR LESS BELOW BEAM TOS LEDGER ANGLE TOS LEDGER ANGLE TOS A B LEDGER ANGLE TOS LEDGER ANGLE TOS 6" OR GREATER BELOW BEAM TOS C D SEE PLAN TOS EL PROVIDE 1/4" THK GUSSET PL @ 48" OC TYP WHEN "TF" < 1/2" SEE PLAN TOS EL LEDGER ANGLE (LLV) SEE PLAN UNO PROVIDE 1/4" THK. GUSSET PL AT TOP FLANGE @ 48" WHEN "A"<1" TYP TOS EL SEE PLAN TOS EL SEE PLAN NOTES: 1. STEEL DECK AND CONCRETE FILL NOT SHOWN FOR CLARITY. LEDGER ANGLE (LLV) SEE PLAN UNO BEAM SEE PLAN LEDGER ANGLE (LLV) SEE PLAN UNO LEDGER ANGLE (LLV) SEE PLAN UNO BEAM SEE PLAN BEAM SEE PLAN BEAM SEE PLAN 6" OR GREATER BELOW BEAM TOS TF AT SLOPING BEAMS) 1" MAX (TRIM AS REQ'D UNO 6" MIN ABOVE BEAM TOS "A" 3/16 2 SIDES TYP @ GUSSET PLATES 3/16 3@12 TYP 3/16 3@12 TYP 3/16 3@12 TYP
