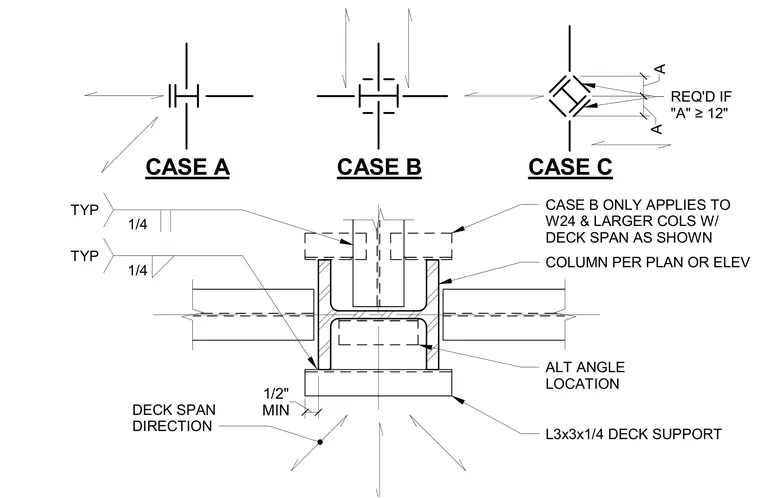

An L3x3x1/4 angle provides metal deck support framing at a wide-flange steel column. The alternate angle location is indicated for specific deck span configurations with a minimum one-half inch clearance. Fillet welds of one-quarter inch size are applied typically as noted. Case B and Case C framing conditions outline specific application rules based on column size and dimension A.
REQ'D IF "A" ≥12" A A CASE B ONLY APPLIES TO W24 & LARGER COLS W/ DECK SPAN AS SHOWN ALT ANGLE LOCATION L3x3x1/4 DECK SUPPORT DECK SPAN DIRECTION 1/4 TYP COLUMN PER PLAN OR ELEV MIN 1/2" 1/4 TYP CASE A CASE B CASE C
