A wide-flange steel beam supports a concrete-filled metal deck with a minimum two-inch bearing and one inch of concrete over the deck. A three-eighths-inch stiffener plate is centered on the web aligned with the curtain wall connection, welded with quarter-inch fillets on three sides. Diaphragm chord bars and half-inch diameter deformed bar anchors match the slab reinforcement spacing and tie into the deck assembly. A curtain wall gravity connection by others ties into the exterior face of the assembly.

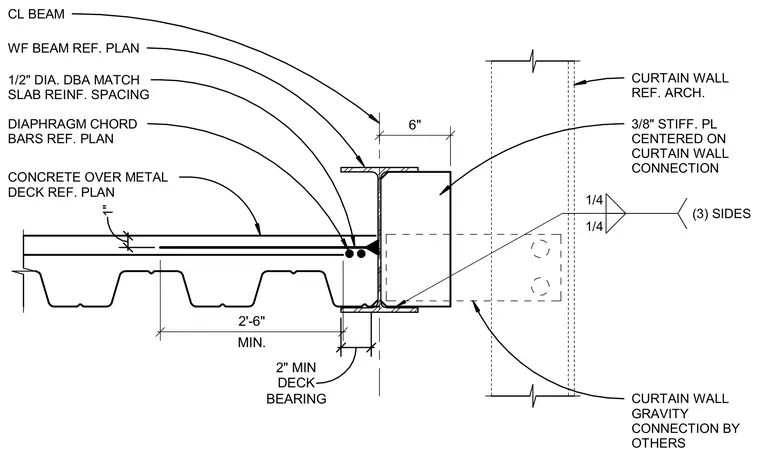

CURTAIN WALL REF. ARCH. CURTAIN WALL GRAVITY CONNECTION BY OTHERS 1/4 1/4 (3) SIDES 3/8" STIFF. PL CENTERED ON CURTAIN WALL CONNECTION 1" CONCRETE OVER METAL DECK REF. PLAN DIAPHRAGM CHORD BARS REF. PLAN 1/2" DIA. DBA MATCH SLAB REINF. SPACING WF BEAM REF. PLAN BEARING 2" MIN DECK MIN. 2'-6" 6" CL BEAM
