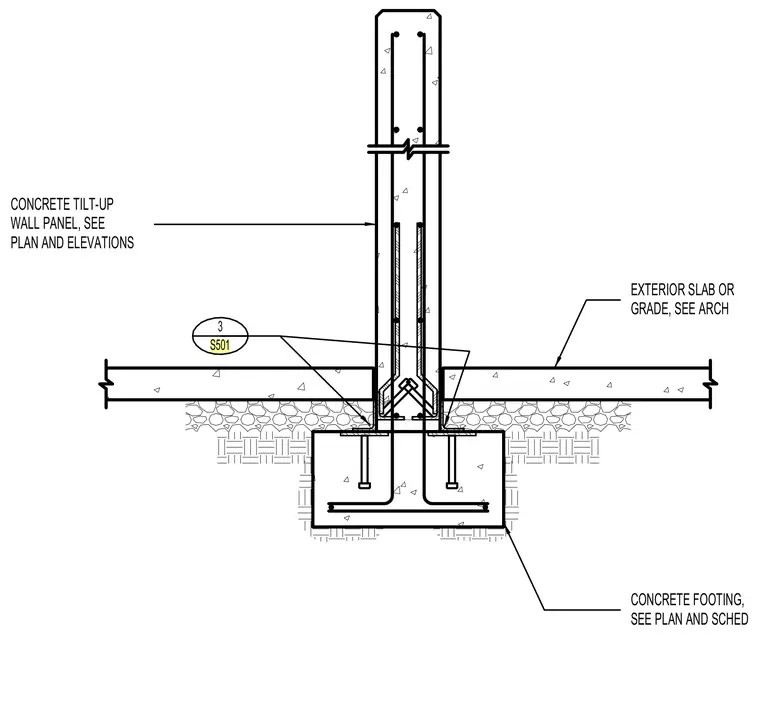

A concrete tilt-up wall panel bears onto a cast-in-place concrete footing and is anchored by vertical reinforcing dowels. An exterior slab or grade sits adjacent to the base of the wall panel. The footing contains horizontal bottom reinforcement and vertical anchor bolts.
3 S501 CONCRETE TILT-UP WALL PANEL, SEE PLAN AND ELEVATIONS EXTERIOR SLAB OR GRADE, SEE ARCH CONCRETE FOOTING, SEE PLAN AND SCHED
