An embed angle is installed at the edge of a concrete slab for elevator and stair openings, shown in both notched and flush edge conditions. An L6x4x1/4 structural steel angle with long leg vertical is anchored into the concrete using one-half-inch diameter by six-inch welded headed studs spaced at eighteen inches on center and six inches from each end. Additional number four top and bottom reinforcing bars extend twenty-four past the embed with standard hooks provided at the slab edge. The notched slab condition features additional number three hairpins spaced at twelve inches on center with a maximum one-and-a-half-inch notch and five-inch minimum thickness. The embed angle is discontinued at post-tensioned anchor locations per drawing notes.

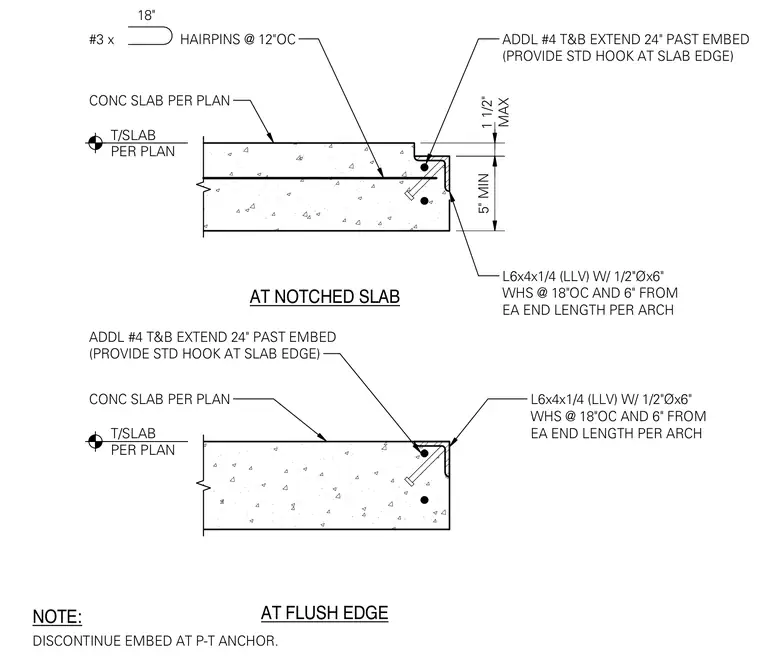

L6x4x1/4 (LLV) W/ 1/2"Øx6" WHS @ 18"OC AND 6" FROM EA END LENGTH PER ARCH ADDL #4 T&B EXTEND 24" PAST EMBED (PROVIDE STD HOOK AT SLAB EDGE) CONC SLAB PER PLAN NOTE: DISCONTINUE EMBED AT P-T ANCHOR. L6x4x1/4 (LLV) W/ 1/2"Øx6" WHS @ 18"OC AND 6" FROM EA END LENGTH PER ARCH ADDL #4 T&B EXTEND 24" PAST EMBED (PROVIDE STD HOOK AT SLAB EDGE) CONC SLAB PER PLAN MAX 1 1/2" 5" MIN #3 x HAIRPINS @ 12"OC 18" AT NOTCHED SLAB AT FLUSH EDGE T/SLAB PER PLAN T/SLAB PER PLAN
