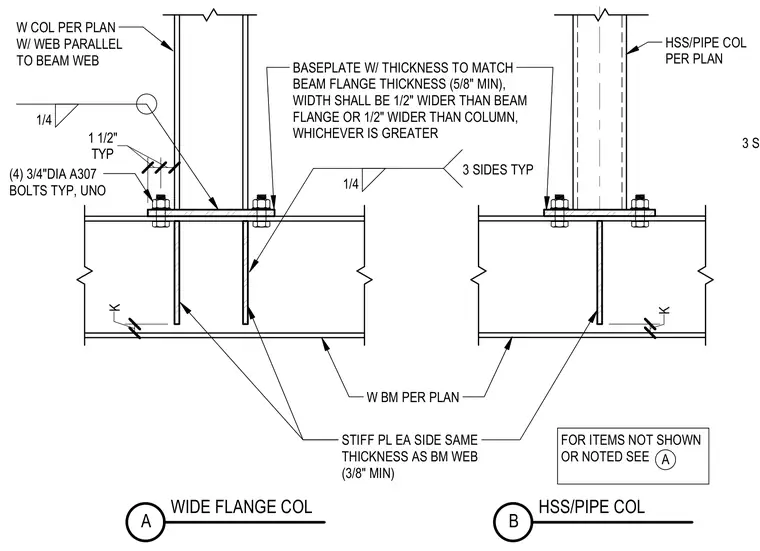

A wide flange column or hollow structural section / pipe column is supported by a wide flange beam per plan. The column base plate matches the beam flange thickness with a five-eighths inch minimum and extends one-half inch wider than the beam flange or column. Four three-quarter inch diameter ASTM A307 bolts secure the connection typically, unless noted otherwise. One and one-half inch stiffener plates on each side match the beam web thickness with a three-eighths inch minimum. Fillet welds are sized at one-quarter inch on three sides typically.
W COL PER PLAN W/ WEB PARALLEL TO BEAM WEB 1/4 1/4 3 SIDES TYP (4) 3/4"DIA A307 BOLTS TYP, UNO K W BM PER PLAN TYP 1 1/2" STIFF PL EA SIDE SAME THICKNESS AS BM WEB (3/8" MIN) HSS/PIPE COL PER PLAN K FOR ITEMS NOT SHOWN OR NOTED SEE A HSS/PIPE COL B WIDE FLANGE COL A BASEPLATE W/ THICKNESS TO MATCH BEAM FLANGE THICKNESS (5/8" MIN), WIDTH SHALL BE 1/2" WIDER THAN BEAM FLANGE OR 1/2" WIDER THAN COLUMN, WHICHEVER IS GREATER 3 SIDES,TYP
