Structural · S-QF6ZN

Exterior Foundation Wall Detail

Materials

Concrete Steel Cold-formed Steel Timber / Wood Masonry / CMU Metal (misc.)

Elements

Columns Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Rebar Splice / Development

About this detail

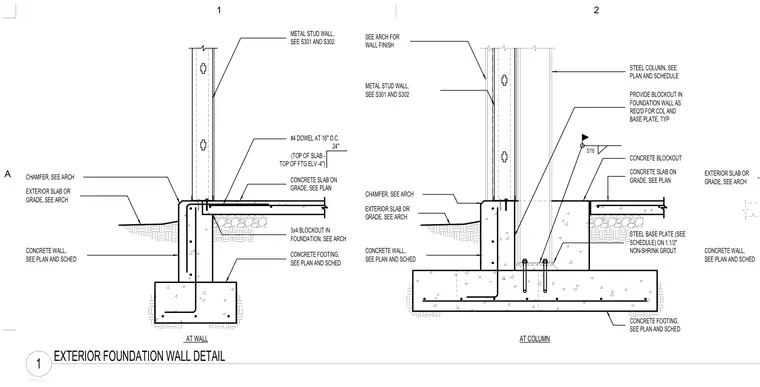

The assembly consists of a concrete footing supporting a concrete foundation wall, with a concrete slab-on-grade bearing against the wall. A metal stud wall ties into the assembly at the wall condition, while a steel column with a steel base plate sits on a one-and-a-half-inch non-shrink grout layer atop a concrete blockout at the column condition. Number four dowels are spaced at sixteen inches on center. Blockouts and chamfers are provided in the foundation wall as required.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
