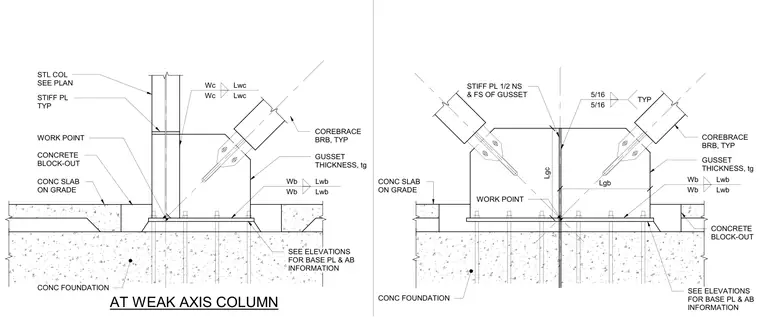

A buckling-restrained brace connects to a gusset plate anchored atop a concrete foundation and concrete slab on grade. A steel column sized per plan bears on a base plate with anchor bolts detailed in separate elevations, featuring typical stiffener plates. Five-sixteenth inch fillet welds connect the gusset plate to the base assembly, with one-half inch plate configurations welded near side and far side. A concrete block-out surrounds the foundation intersection at the slab level, establishing the work point for the brace alignment.
CONC SLAB ON GRADE STL COL SEE PLAN CONCRETE BLOCK-OUT STIFF PL TYP WORK POINT CONC FOUNDATION COREBRACE BRB, TYP GUSSET THICKNESS, tg Wb Lwb Wb Lwb Wc Lwc Wc Lwc AT WEAK AXIS COLUMN SEE ELEVATIONS FOR BASE PL & AB INFORMATION CONC SLAB ON GRADE CONCRETE BLOCK-OUT STIFF PL 1/2 NS & FS OF GUSSET CONC FOUNDATION WORK POINT 5/16 5/16 TYP COREBRACE BRB, TYP GUSSET THICKNESS, tg Wb Lwb Wb Lwb SEE ELEVATIONS FOR BASE PL & AB INFORMATION Lgb Lgc
