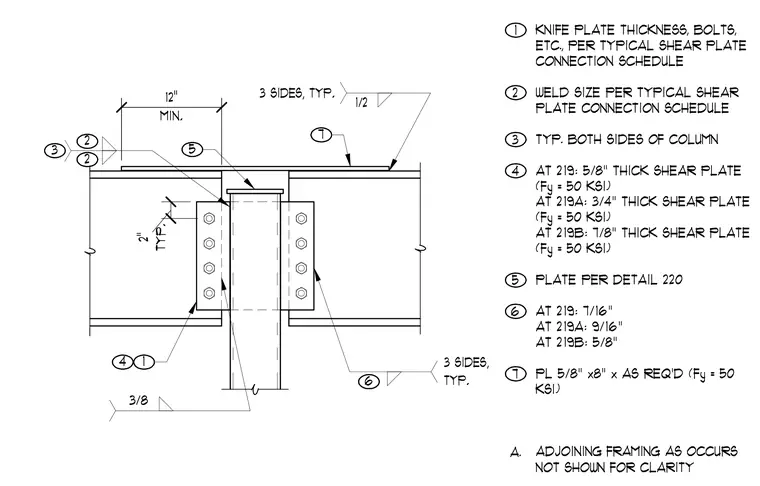

A structural steel knife plate and shear plate connection provides jamb reinforcing at a tilt-up panel return wall. The assembly features a five-eighths inch by eight-inch plate with a yield strength of fifty kilopounds per square inch welded typically on three sides. Shear plates ranging from five-eighths to seven-eighths inch in thickness connect the framing members with bolts spaced at a two-inch typical dimension. A one-half inch fillet weld secures components on both sides of the column with a twelve-inch minimum clearance. Additional plates per detail two-twenty and variable weld sizes are specified according to the exact location designation.
1 KNIFE PLATE THICKNESS, BOLTS, ETC., PER TYPICAL SHEAR PLATE CONNECTION SCHEDULE 2 WELD SIZE PER TYPICAL SHEAR PLATE CONNECTION SCHEDULE 3 TYP. BOTH SIDES OF COLUMN 5 PLATE PER DETAIL 220 6 AT 219: 7/16" AT 219A: 9/16" AT 219B: 5/8" A. ADJOINING FRAMING AS OCCURS NOT SHOWN FOR CLARITY 3 2 2 5 7 1 4 7 PL 5/8" x8" x AS REQ'D (Fy = 50 KSI) TYP. 2" MIN. 12" 1/2 3 SIDES, TYP. 3 SIDES, TYP. 6 3/8 4 AT 219: 5/8" THICK SHEAR PLATE (Fy = 50 KSI) AT 219A: 3/4" THICK SHEAR PLATE (Fy = 50 KSI) AT 219B: 7/8" THICK SHEAR PLATE (Fy = 50 KSI)
