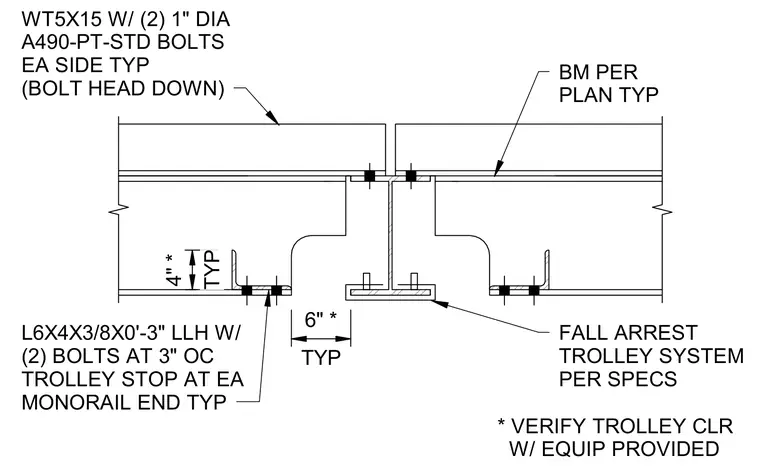

A WT5x15 structural tee connects to the supporting beam sized per plan using two 1-inch diameter A490-PT-STD bolts on each side with bolt heads oriented downward. An L6x4x3/8 angle measuring 3 inches long is bolted with two bolts at 3 inches on center to serve as a trolley stop at each monorail end. A fall arrest trolley system is installed per specifications, requiring field verification of trolley clearance with the provided equipment.
TYP 6" * TYP 4" * * VERIFY TROLLEY CLR W/ EQUIP PROVIDED FALL ARREST TROLLEY SYSTEM PER SPECS BM PER PLAN TYP L6X4X3/8X0'-3" LLH W/ (2) BOLTS AT 3" OC TROLLEY STOP AT EA MONORAIL END TYP WT5X15 W/ (2) 1" DIA A490-PT-STD BOLTS EA SIDE TYP (BOLT HEAD DOWN)
