Structural Steel SHS Post Base Plate at Concrete Nib

Materials

Concrete Timber / Wood

Elements

Beams Floors / Slabs Arches Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Bolted Connection Shear Stud / Composite Embed Plate

About this detail

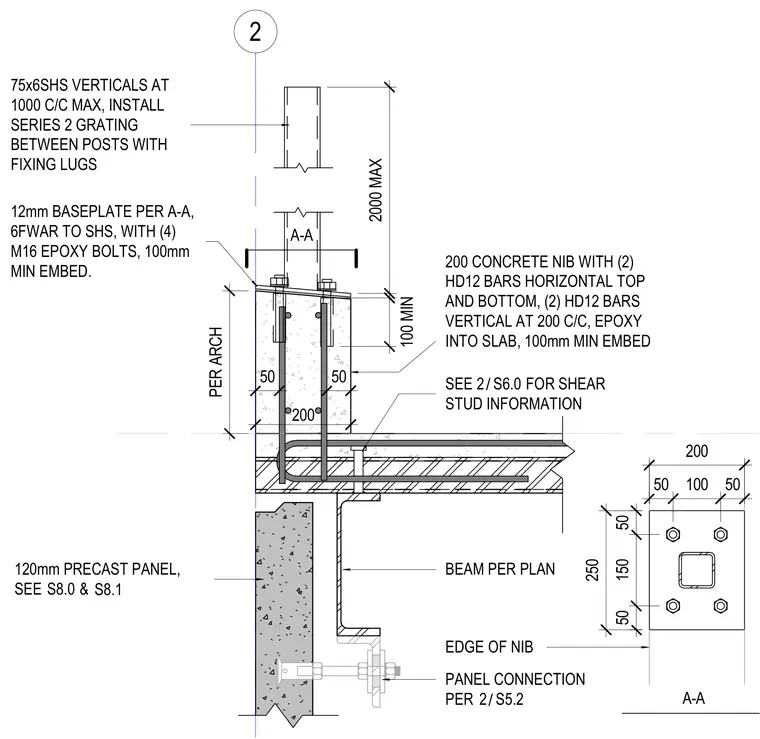

A 75x6 square hollow section vertical post is secured to a 12 millimeter base plate with four M16 epoxy bolts having a 100 millimeter minimum embedment. The base plate connects to a 200 millimeter concrete nib reinforced with two HD12 horizontal bars at the top and bottom, and two HD12 vertical bars spaced at 200 millimeters center-to-center epoxy-anchored into the slab with a 100 millimeter minimum embedment. A series 2 metal grating with fixing lugs spans between posts. Below the slab, a supporting steel beam runs per plan, and a 120 millimeter precast concrete panel connects via a panel connection assembly.
