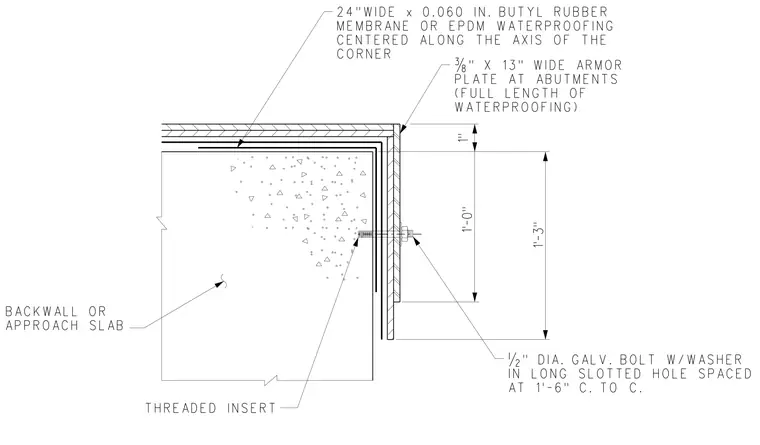

A concrete backwall or approach slab is protected at the corner by a three-eighths-inch by thirteen-inch wide armor plate running the full length of the waterproofing. The armor plate is secured with half-inch diameter galvanized bolts with washers installed in long slotted holes spaced at one foot six inches on center, engaging threaded inserts embedded in the concrete. A twenty-four-inch wide by zero point zero six zero-inch thick butyl rubber membrane or ethylene propylene diene monomer waterproofing is centered along the axis of the corner beneath the protective layers.
CORNER CENTERED ALONG THE AXIS OF THE MEMBRANE OR EPDM WATERPROOFING 24"WIDE x 0.060 IN. BUTYL RUBBER AT 1’-6" C. TO C. IN LONG SLOTTED HOLE SPACED " DIA. GALV. BOLT W/WASHER WATERPROOFING) (FULL LENGTH OF PLATE AT ABUTMENTS " X 13" WIDE ARMOR THREADED INSERT APPROACH SLAB BACKWALL OR 1 ’- 0 " 1 ’- 3 " 1 "
