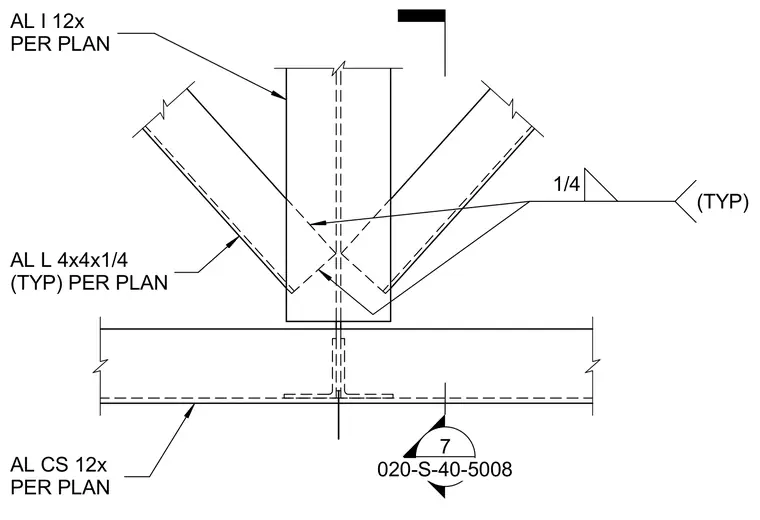

An aluminum I-section member connects to supporting structural elements with typical one-quarter inch fillet welds. Aluminum angles measuring 4x4x1/4 size are positioned symmetrically as diagonal braces per plan. An aluminum channel section runs along the base and ties into the assembly. All component sizes and configurations are specified per plan.
7 020-S-40-5008 AL I 12x PER PLAN AL CS 12x PER PLAN AL L 4x4x1/4 (TYP) PER PLAN 1/4 (TYP)
