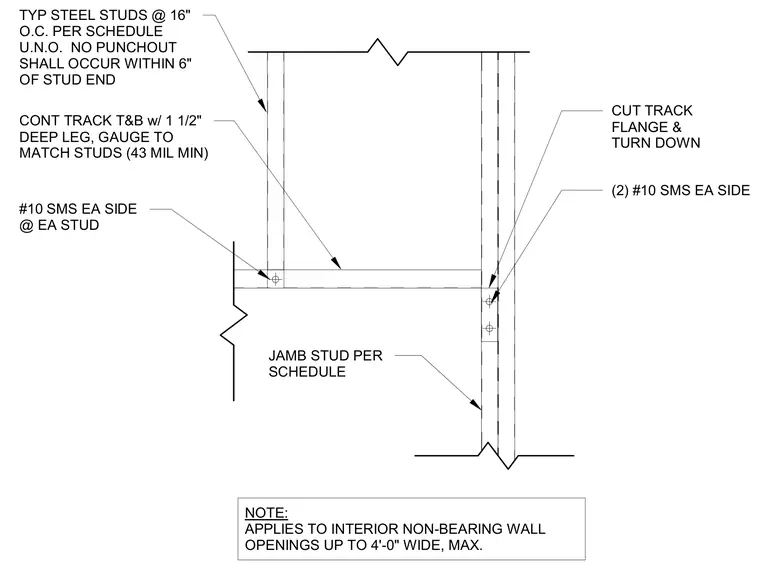

Cold-formed steel studs spaced at sixteen inches on center support the wall assembly, with no punchouts permitted within six inches of the stud end unless noted otherwise. A continuous track with one-and-a-half-inch deep legs and a minimum thickness of forty-three mils matches the stud gauge and forms the header. Jamb studs per schedule intersect the header where the track flange is cut and turned down to form a tab. Two number-ten sheet metal screws secure each side of the jamb stud connection, and one number-ten sheet metal screw fastens each side at every stud location. This connection applies specifically to interior non-bearing wall openings up to four feet wide maximum.
#10 SMS EA SIDE @ EA STUD CONT TRACK T&B w/ 1 1/2" DEEP LEG, GAUGE TO MATCH STUDS (43 MIL MIN) TYP STEEL STUDS @ 16" O.C. PER SCHEDULE U.N.O. NO PUNCHOUT SHALL OCCUR WITHIN 6" OF STUD END (2) #10 SMS EA SIDE JAMB STUD PER SCHEDULE CUT TRACK FLANGE & TURN DOWN NOTE: APPLIES TO INTERIOR NON-BEARING WALL OPENINGS UP TO 4'-0" WIDE, MAX.
