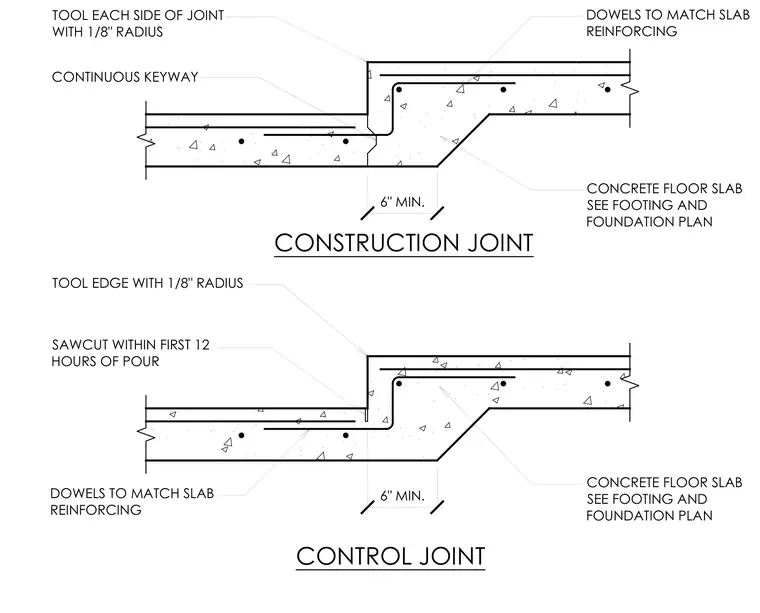

Two conditions comprise a concrete slab depression: a construction joint and a control joint. Both conditions feature a concrete floor slab with a minimum 6-inch vertical offset and dowels matching the slab reinforcing. The construction joint includes a continuous keyway and a tool edge with a one-eighth-inch radius on each side of the joint. The control joint includes a sawcut performed within the first twelve hours of the pour alongside a tool edge with a one-eighth-inch radius.
SAWCUT WITHIN FIRST 12 HOURS OF POUR TOOL EDGE WITH 1/8" RADIUS CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONTINUOUS KEYWAY TOOL EACH SIDE OF JOINT WITH 1/8" RADIUS DOWELS TO MATCH SLAB REINFORCING DOWELS TO MATCH SLAB REINFORCING CONSTRUCTION JOINT CONTROL JOINT 6" MIN. 6" MIN.
