Structural · S-QDEEF

Concrete Grade Beam Schedule

Materials

Concrete Reinforced Concrete

Elements

Beams Walls Floors / Slabs Foundations / Footings Reinforcing

Connections

Rebar Splice / Development

About this detail

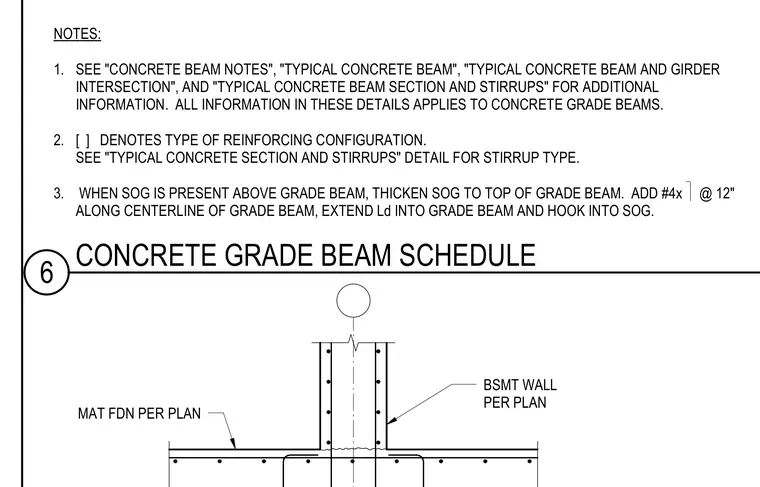

General notes and requirements for reinforced concrete grade beams include references to standard beam details, stirrup configurations, and reinforcing layouts. When a slab on grade is present above the grade beam, the slab is thickened to the top of the grade beam with number four reinforcing bars spaced at twelve inches on center along the centerline, extending development length into the grade beam and hooking into the slab. The assembly integrates with a mat foundation and basement wall sized per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
