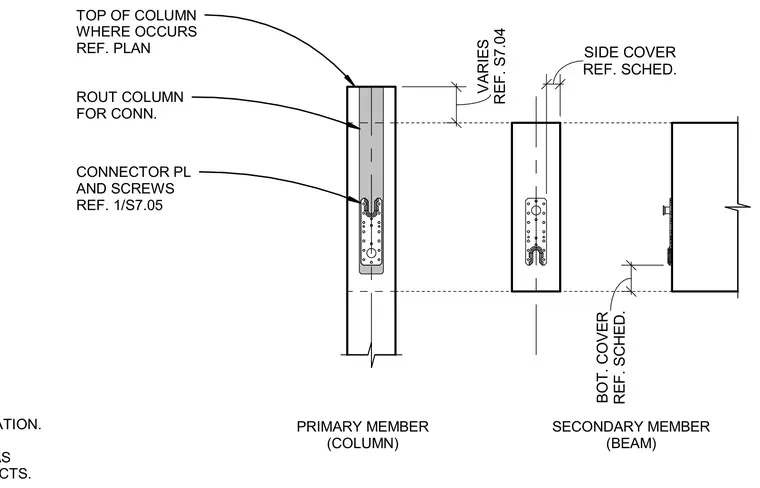

A concealed timber connection is formed between a primary wood column and a secondary wood beam. The primary column is routed to receive a steel connector plate fastened with structural screws. Reinforcing screw locations are adjusted as required to avoid screw conflicts. Side and bottom cover dimensions are referenced from schedules and structural drawings.
PRIMARY MEMBER (COLUMN) SECONDARY MEMBER (BEAM) REF. SCHED. BOT. COVER TOP OF COLUMN WHERE OCCURS REF. PLAN ROUT COLUMN FOR CONN. CONNECTOR PL AND SCREWS REF. 1/S7.05 REF. S7.04 VARIES REF. SCHED. SIDE COVER OCCURS AT TOP OF CLT DECK ELEVATION. ADJUST REINF. SCREW LOCATIONS AS REQUIRED TO AVOID SCREW CONFLICTS.
