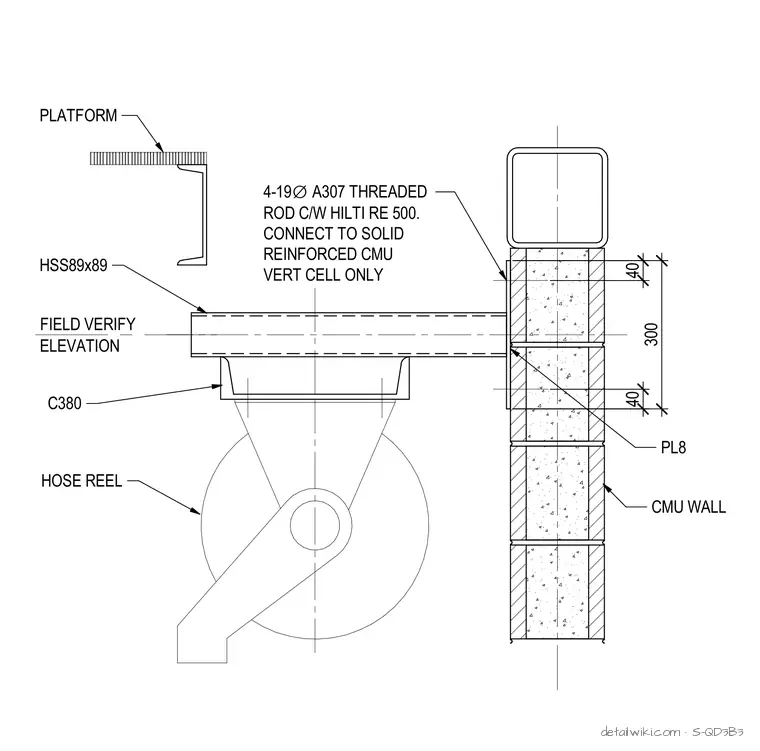

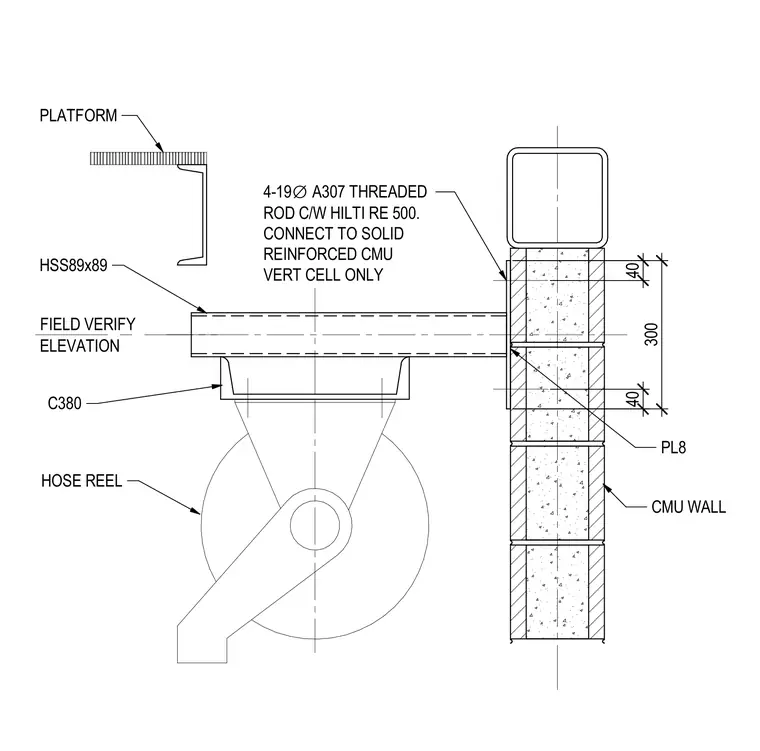

A hollow structural section member measuring HSS89x89 connects back to a solid reinforced concrete masonry unit vertical cell via four nineteen-millimeter diameter ASTM A307 threaded rods set with Hilti RE 500 structural adhesive and an eight-millimeter plate. A channel designated as C380 supports the hose reel underneath the platform framing. The installation requires field verification of the elevation prior to layout and anchoring.
4-19 ∅ A307 THREADED ROD C/W HILTI RE 500. CONNECT TO SOLID REINFORCED CMU VERT CELL ONLY HSS89x89 C380 HOSE REEL PL8 CMU WALL FIELD VERIFY ELEVATION 300 40 40 PLATFORM
