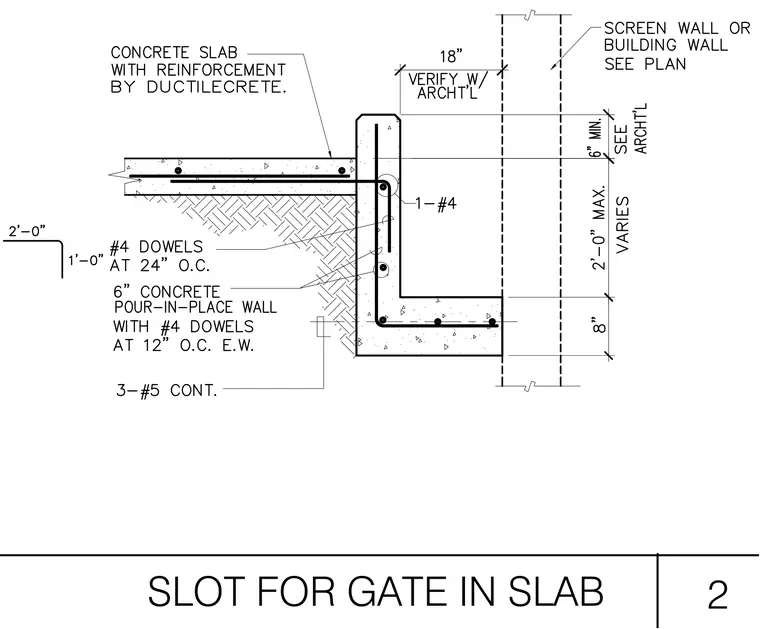

A reinforced concrete slab transitions into a cast-in-place concrete recess forming a vertical slot for a gate adjacent to a screen wall or building wall. The assembly features a six-inch concrete pour-in-place wall with number four dowels at twelve inches on center each way, augmented by three continuous number five reinforcing bars. The concrete slab contains reinforcement by Ductilecrete and ties into the vertical wall section with number four dowels spaced at twenty-four inches on center. A vertical number four bar is detailed within the eight-inch thick base leg of the recess, with dimensions and clearances verified per architectural plans.
