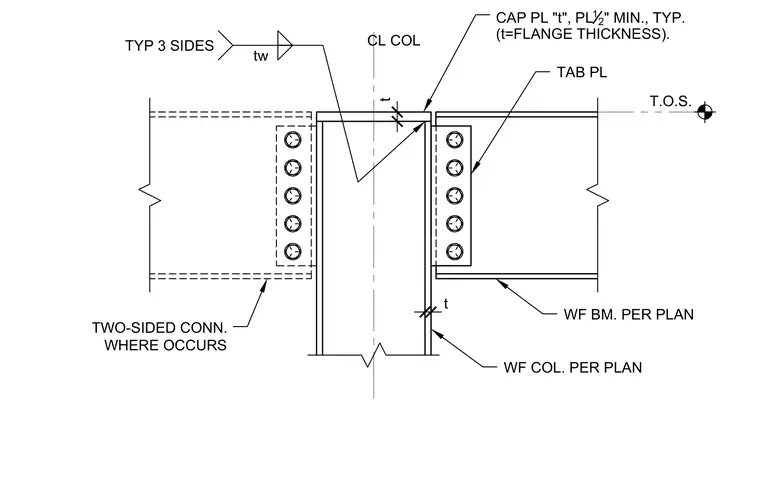

A wide flange column is capped with a plate whose thickness matches the flange thickness, with a one-half inch minimum plate thickness typical. Wide flange beams frame into the column on one or both sides using a bolted shear tab welded to the column flange. The cap plate is welded on three sides typically. Two-sided connections are provided where wide flange beams occur on opposite sides of the column.
CAP PL "t", PL 1 2 " MIN., TYP. (t=FLANGE THICKNESS). tw TWO-SIDED CONN. WHERE OCCURS WF BM. PER PLAN WF COL. PER PLAN t t TAB PL TYP 3 SIDES T.O.S. CL COL
