Steel beams frame into a hollow structural section hanger using shear plates bolted with three fasteners per connection. A one-inch clearance is maintained at the base of the hanger. The shear plates and fasteners are sized per the typical non-frame beam connection schedule and details. Steel beams extend where required with extended shear plates as shown on plan.

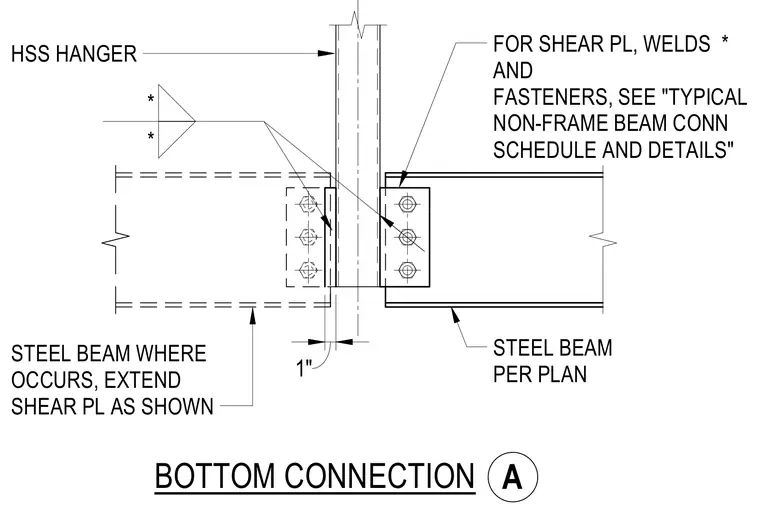

FOR SHEAR PL, WELDS * AND FASTENERS, SEE "TYPICAL NON-FRAME BEAM CONN SCHEDULE AND DETAILS" STEEL BEAM WHERE OCCURS, EXTEND SHEAR PL AS SHOWN STEEL BEAM PER PLAN HSS HANGER BOTTOM CONNECTION * * 1" A
