Base Cabinet with Cooktop Installation Detail

Materials

Elements

Walls Millwork / Casework Anchors / Embeds

About this detail

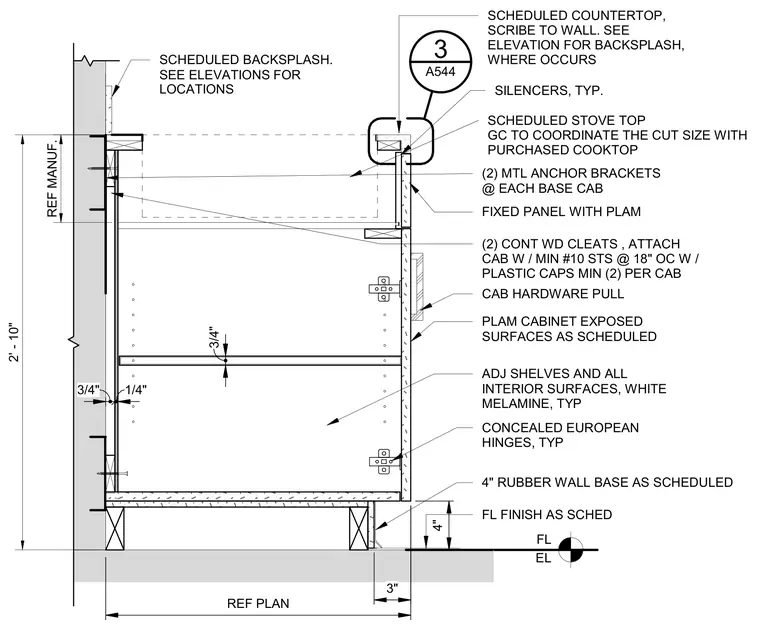

A base cabinet section anchors to a partition wall with continuous wood cleats and metal anchor brackets. The cabinet features high-pressure decorative laminate exposed surfaces, white melamine interior surfaces with adjustable shelving, concealed European hinges, and a scheduled countertop with a cutout for a cooktop. A four-inch rubber wall base runs along the floor finish at the toe kick. Wood cleats are attached with minimum number ten stainless steel screws at eighteen inches on center with plastic caps, utilizing at least two screws per cabinet.
