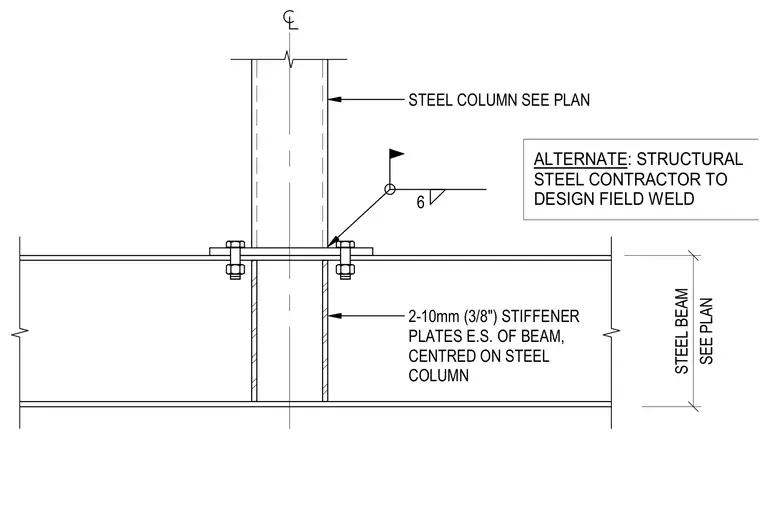

A steel column connects to a supporting steel beam sized per plan with a base plate and anchor bolts securing the flange. Two 10mm (3/8-inch) stiffener plates are centered on the steel column on each side of the beam web. A field weld connects the base plate to the supporting beam flange, with the structural steel contractor designing the alternate field weld as required.
SEE PLAN STEEL BEAM STEEL COLUMN SEE PLAN ALTERNATE: STRUCTURAL STEEL CONTRACTOR TO DESIGN FIELD WELD 2-10mm (3/8") STIFFENER PLATES E.S. OF BEAM, CENTRED ON STEEL COLUMN 6
