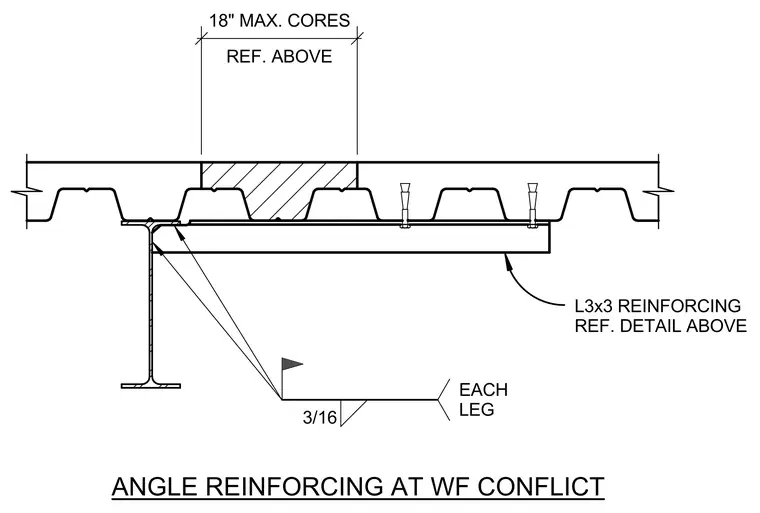

An L3x3 reinforcing angle is installed beneath the metal deck adjacent to a wide flange beam to resolve a framing conflict. A three-sixteenths inch fillet weld is specified on each leg of the connection. The concrete fill above the wide flange beam spans eighteen inches maximum across the cores.
L3x3 REINFORCING REF. DETAIL ABOVE ANGLE REINFORCING AT WF CONFLICT REF. ABOVE 18" MAX. CORES 3/16 EACH LEG
