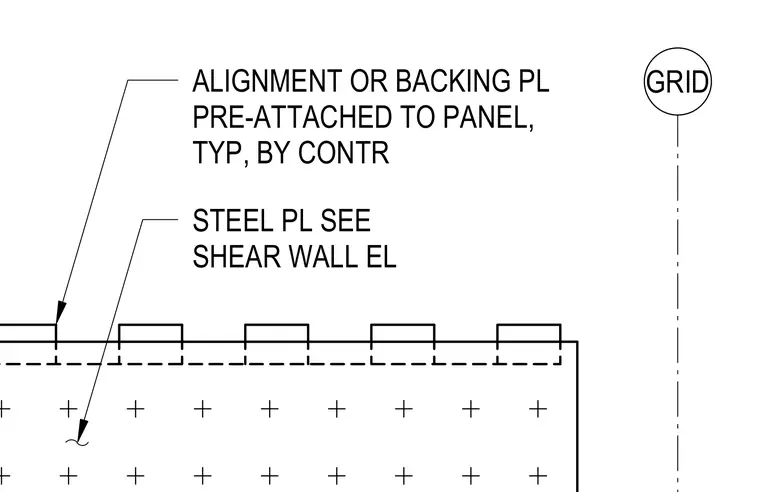

An alignment or backing steel plate is pre-attached to the panel typically by the contractor. A secondary steel plate is referenced per the shear wall elevation drawing alongside the grid line.
GRID STEEL PL SEE SHEAR WALL EL ALIGNMENT OR BACKING PL PRE-ATTACHED TO PANEL, TYP, BY CONTR
